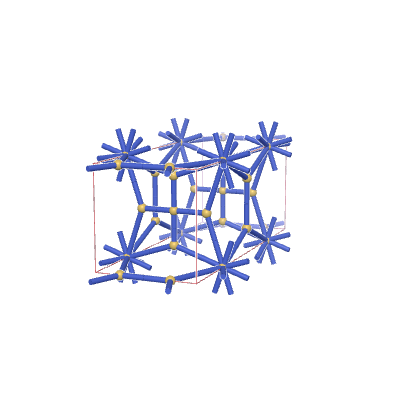

s-net: sqc8284
















					Systre crystallographic geometry file (.cgd)











Links to this net in other databases





			topcryst










Topological data





Vertices per primitive translational unit 16


Edges per primitive translational unit 34


Transitivity (vertex,edge)(4,4)


Vertex degrees {3,12,3,4}


Vertex coordination sequence  [(3, 23, 38, 90, 140, 194, 284, 356, 458, 576), (12, 14, 60, 78, 144, 214, 268, 366, 468, 562), (3, 22, 21, 91, 106, 192, 268, 326, 444, 546), (4, 4, 36, 32, 136, 138, 252, 326, 396, 526)]


Wells’ vertex symbol [4.5^2, 4^10.5^8.6^8.7^16.8^16.9^4.10^4, 4^3, 4^4.6^2]


Systre key (3, 1, 2, 0, 0, 0, 1, 2, 0, 1, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 4, 0, 1, 0, 1, 5, 0, 0, 0, 1, 5, 1, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 1, 7, 1, 0, 0, 1, 8, 0, 0, 0, 1, 9, 0, 0, 0, 2, 10, 0, 0, 0, 3, 6, 0, -1, 0, 3, 11, 0, 0, 0, 4, 10, 1, 0, 0, 5, 10, 0, 0, 0, 6, 11, 0, 0, 0, 7, 10, 0, 1, 0, 8, 9, -1, 0, 0, 8, 11, 0, 0, 1, 9, 11, 0, 0, 1, 11, 12, 0, 0, 0, 11, 12, 0, 1, 0, 11, 13, 0, 0, 0, 11, 13, 0, 1, 0, 11, 14, 0, 0, 0, 11, 14, 1, 0, 0, 11, 15, 0, 0, 0, 11, 15, 1, 0, 0, 12, 16, 0, 0, 0, 13, 16, 1, 0, 0, 14, 16, 0, 0, 0, 15, 16, 0, 1, 0)






Geometric data



Systre equilibrium placement (barycentric embedding) maximising unit cell volume





 Spacegroup: P42/mmc



 Parameters:



 a   b   c   alpha   beta   gamma



			 1.94138
			 1.94138
			 4.88351
			 90.0
			 90.0
			 90.0








 Vertex positions:




				 X-pos
				 Y-pos
				 Z-pos





						 0.25
						 0
						 0




						 0
						 0
						 0.25




						 0.16667
						 0.5
						 0.25




						 0.5
						 0.5
						 0.25







Edge end points:











Systre coordinates favouring equal edge-lengths





 Spacegroup: P42/mmc




 Parameters:



 a   b   c   alpha   beta   gamma



			 1.44587
			 1.44587
			 3.89716
			 90.0
			 90.0
			 90.0








Vertex positions:




					 X-pos
					 Y-pos
					 Z-pos





							 0.16651
							  0
							  0




							 0
							  0
							  0.25




							 0.16583
							  0.5
							  0.06039




							 0.5
							  0.5
							  0.25








Edge end points:















Hyperbolic sources





h-nets with faithful topology




		No items to display.




h-nets with edge collapse
