Systre crystallographic geometry file (.cgd) |
topcryst |
Vertices per primitive translational unit | 16 |
Edges per primitive translational unit | 36 |
Transitivity (vertex,edge) | (4,5) |
Vertex degrees | {8,3,6,4} |
Vertex coordination sequence | [(8, 36, 110, 214, 372, 552, 794, 1050, 1376, 1708), (3, 16, 41, 116, 221, 399, 594, 836, 1118, 1431), (6, 10, 42, 82, 210, 358, 558, 802, 1058, 1400), (4, 16, 22, 76, 132, 298, 482, 696, 1000, 1234)] |
Wells’ vertex symbol | [5^8.6^12.8^4.9^4, 4.5^2, 4^4.5^2.6^4.7^4.8, 4^4.6^2] |
Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 0, 0, 1, 1, 2, 0, 1, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 2, 9, 0, 0, 0, 2, 10, 0, 0, 0, 3, 11, 0, 0, 0, 3, 12, 0, 0, 0, 4, 11, -1, 0, 1, 4, 13, 0, 0, 0, 5, 12, 0, -1, 1, 5, 14, 0, 0, 0, 6, 13, 1, 0, 0, 6, 14, 0, 1, 0, 7, 13, 0, -1, 0, 7, 14, 0, 0, -1, 8, 12, -1, 0, 0, 8, 14, 0, 1, -1, 9, 11, 0, 0, 0, 9, 13, 1, -1, 0, 10, 11, -1, 0, 1, 10, 12, -1, -1, 1, 11, 15, 0, 0, 0, 11, 16, 0, 0, 0, 12, 15, 0, 1, 0, 12, 16, 0, 0, 0, 13, 15, -1, 1, 0, 13, 16, -1, 0, 1, 14, 15, -1, 0, 1, 14, 16, 0, -1, 1) |

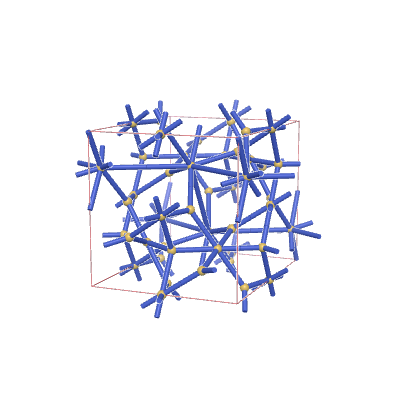

Spacegroup: I41/a
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
3.02262 | 3.02262 | 3.67397 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0 | 0.25 | 0.125 |
0.08333 | 0 | 0.29167 |
0 | 0 | 0.5 |
0 | 0.25 | 0.625 |
Edge end points:
Spacegroup: I41/a
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
2.01363 | 2.01363 | 3.05568 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0 | 0.25 | 0.125 |
0.06836 | 0.02975 | 0.5263 |
0 | 0 | 0.5 |
0 | 0.25 | 0.625 |
Edge end points:
Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
---|---|---|---|---|---|
![]() |
hqc1213 | *2244 | (4,4,2) | {8,3,6,4} | {5.5.5.5.5.5.5.5}{5.4.5}{5.4.4.5... |
