Systre crystallographic geometry file (.cgd) |
topcryst |
Vertices per primitive translational unit | 17 |
Edges per primitive translational unit | 39 |
Transitivity (vertex,edge) | (5,6) |
Vertex degrees | {12,4,3,4,12} |
Vertex coordination sequence | [(12, 72, 242, 548, 990, 1568, 2282, 3132, 4118, 5240), (4, 16, 85, 239, 548, 972, 1568, 2282, 3132, 4118), (3, 15, 36, 161, 330, 722, 1209, 1883, 2664, 3586), (4, 24, 46, 190, 312, 740, 1180, 1868, 2670, 3588), (12, 18, 72, 110, 312, 482, 1076, 1608, 2400, 3314)] |
Wells’ vertex symbol | [4^12.5^12.6^9.7^24.8^6.10^3, 4^2.5^2.6^2, 4^2.5, 4^4.6^2, 4^12.6^30.7^21.8^3] |
Systre key | (3, 1, 1, -1, 0, 0, 1, 1, 0, -1, 0, 1, 1, 0, 0, -1, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 2, 8, 0, 0, 0, 2, 9, 0, 0, 0, 2, 10, 0, 0, 0, 3, 11, 0, 0, 0, 3, 12, 0, 0, 0, 3, 13, 0, 0, 0, 4, 13, 0, 0, -1, 4, 14, 0, 0, 0, 4, 15, 0, 0, 0, 5, 10, 0, -1, 0, 5, 14, 0, -1, 1, 5, 16, 0, 0, 0, 6, 9, -1, 0, 0, 6, 11, -1, 0, -1, 6, 16, 0, 0, -1, 7, 8, -1, -1, 0, 7, 12, -1, 0, 0, 7, 15, 0, -1, 0, 8, 17, 0, 0, -1, 8, 17, 0, 0, 0, 9, 17, 0, 0, -1, 10, 17, 0, 0, 0, 11, 17, 0, -1, 0, 11, 17, 0, 0, 0, 12, 17, 0, -1, 0, 13, 17, 0, 0, 0, 14, 17, -1, 0, -1, 14, 17, 0, 0, -1, 15, 17, -1, 0, -1, 16, 17, -1, -1, 0) |
Spacegroup: R-3m
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
3.36066 | 3.36066 | 4.33465 | 90.0 | 90.0 | 120.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0 | 0 | 0 |
0 | 0.31818 | 0 |
0 | 0.22727 | 0.5 |
0 | 0.5 | 0 |
0 | 0 | 0.5 |
Edge end points:
Spacegroup: R-3m
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
1.68957 | 1.68957 | 3.23238 | 90.0 | 90.0 | 120.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0 | 0 | 0 |
0 | 0.21727 | 0 |
0 | 0.43589 | 0.5 |
0 | 0.5 | 0 |
0 | 0 | 0.5 |
Edge end points:

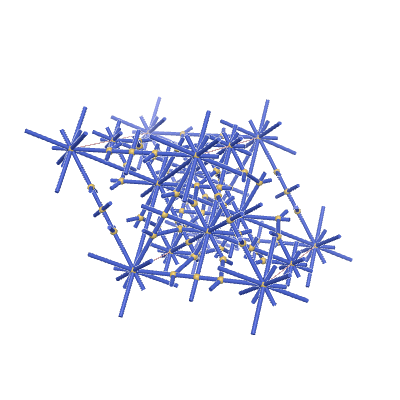

Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
---|---|---|---|---|---|
![]() |
hqc2237 | *2626 | (5,6,2) | {12,4,3,4,12} | {5.5.5.5.5.5.5.5.5.5.5.5}{5.4.4.... |
