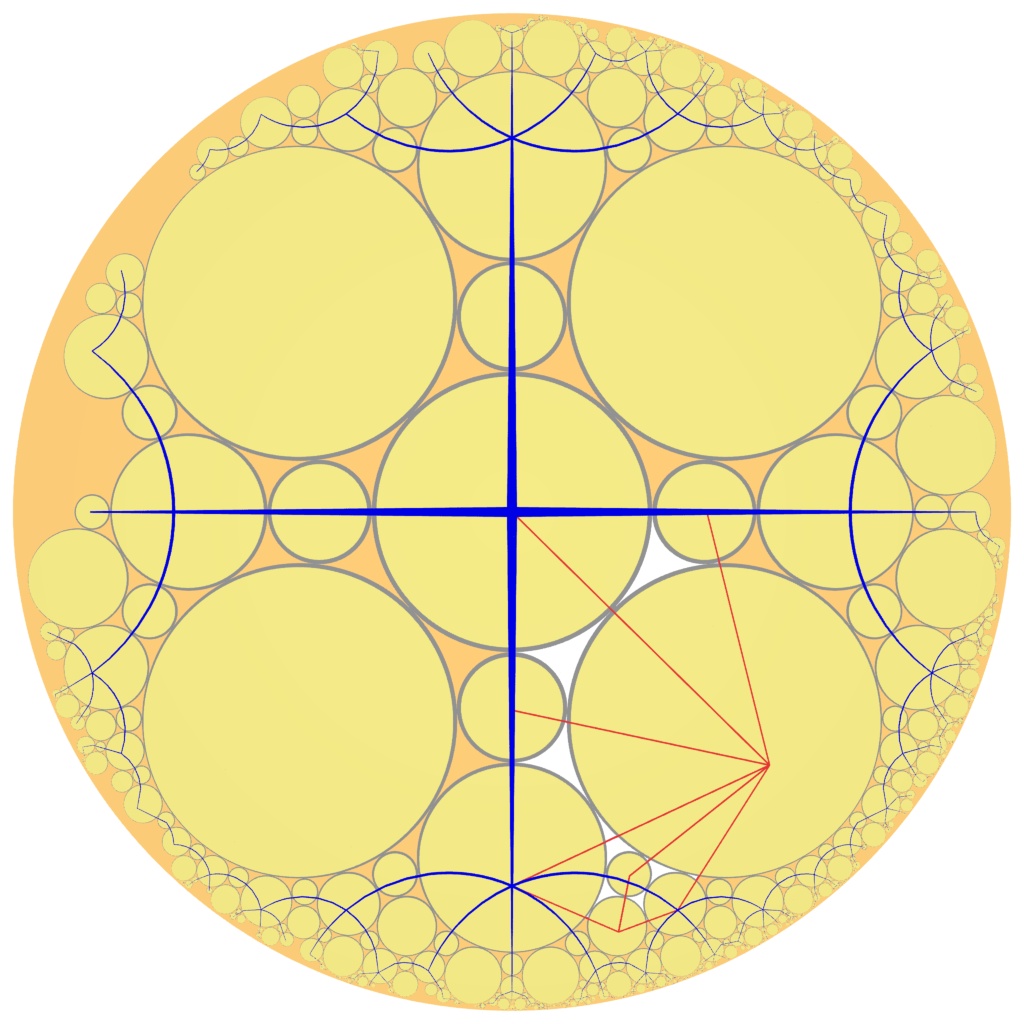

Tiling: QC1620

Topological data

Orbifold symbol	*222222
Transitivity (vert,edge,face)	(3, 3, 2)
Vertex degrees	{4,6,4}
Vertex symbol	{10.10.10.10}{10.4.10.10.4.10}{10.4.10.4}
Delaney-Dress symbol	<1620.2:7:1 3 5 7,2 4 5 6 7,1 2 3 6 7:10 4,4 6 4>
Dual tiling
Hyperbolic net

Derived U-tilings

4 records listed.

Image	U-tiling name	PGD Subgroup	Transitivity (Vert,Edge,Face)	Vertex Degree	Vertex Symbol	P net	G net	D net
	UQC3480	*222222a	(3,3,2)	{4,6,4}	{10.10.10.10}{10.4.10.10.4.10}{1...	sqc72	sqc1329	sqc1354
	UQC3481	*222222a	(3,3,2)	{4,6,4}	{10.10.10.10}{10.4.10.10.4.10}{1...	sqc72	sqc1293	sqc1311
	UQC3482	*222222a	(3,3,2)	{4,6,4}	{10.10.10.10}{10.4.10.10.4.10}{1...	sqc67	sqc1334	sqc1358
	UQC3483	*222222b	(3,3,2)	{4,6,4}	{10.10.10.10}{10.4.10.10.4.10}{1...	No s‑net	sqc1333	sqc72
