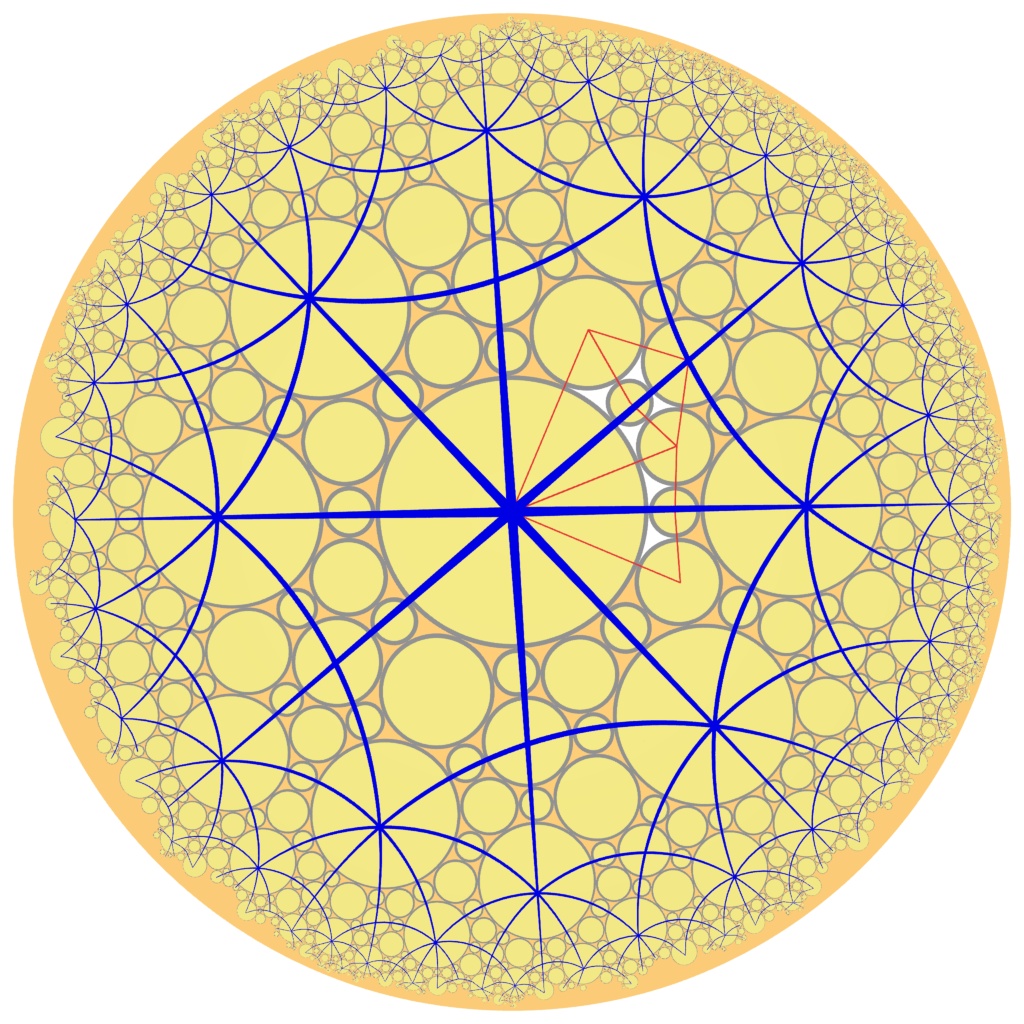

Tiling: QC277
Topological data
| Orbifold symbol | *2223 |
| Transitivity (vert,edge,face) | (2, 2, 3) |
| Vertex degrees | {8,4} |
| Vertex symbol | {3.3.4.3.3.3.4.3}{3.4.3.4} |
| Delaney-Dress symbol | <277.2:6:1 2 4 6,1 3 4 5 6,2 5 6:3 3 4,8 4> |
| Dual tiling |  |
| Hyperbolic net |  |
Derived U-tilings
1 record listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC458 | *2223 | (2,2,3) | {8,4} | {3.3.4.3.3.3.4.3}{3.4.3.4} |
sqc12673
|
sqc12672
|
sqc8959
|
