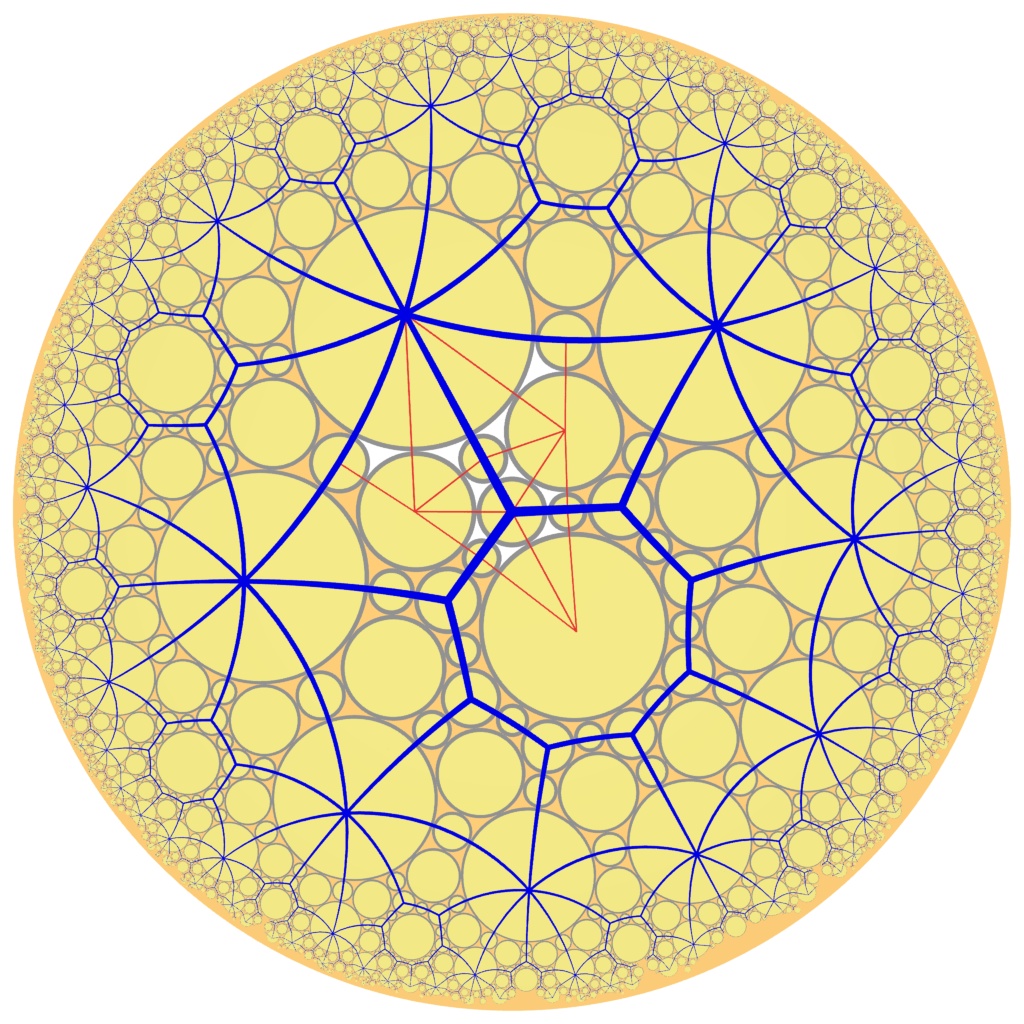

Tiling: QC633
Topological data
| Orbifold symbol | *2224 |
| Transitivity (vert,edge,face) | (2, 5, 3) |
| Vertex degrees | {8,3} |
| Vertex symbol | {8.4.4}{4.4.4.4.4.4.4.4} |
| Delaney-Dress symbol | <633.2:10:1 2 3 5 7 8 9 10,2 4 10 8 9,3 8 6 7 9 10:8 4 4,3 8> |

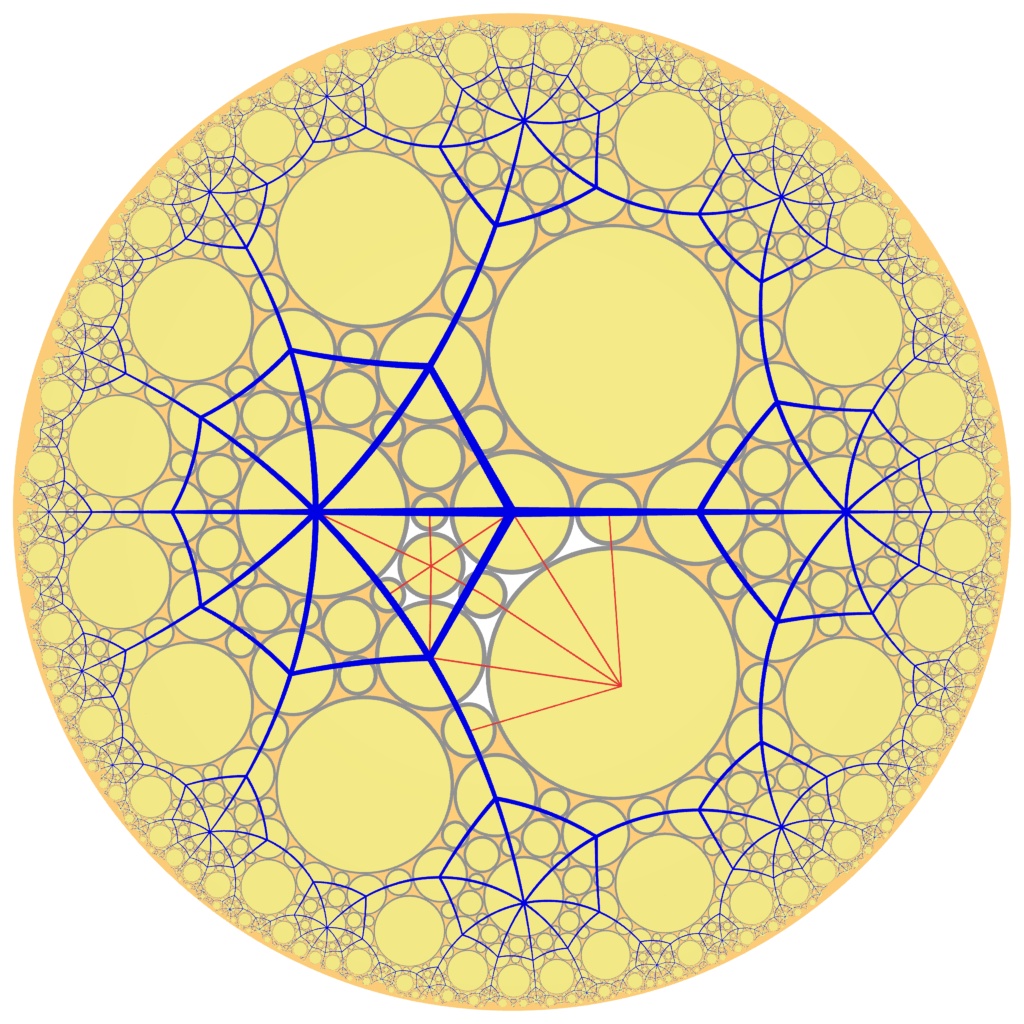

| Dual tiling |  |
| Hyperbolic net |  |
Derived U-tilings
1 record listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC1331 | *2224 | (2,5,3) | {8,3} | {8.4.4}{4.4.4.4.4.4.4.4} |
sqc9509
|
sqc12948
|
sqc9695
|
