U-tiling: UQC1049
h-net
1 record listed.

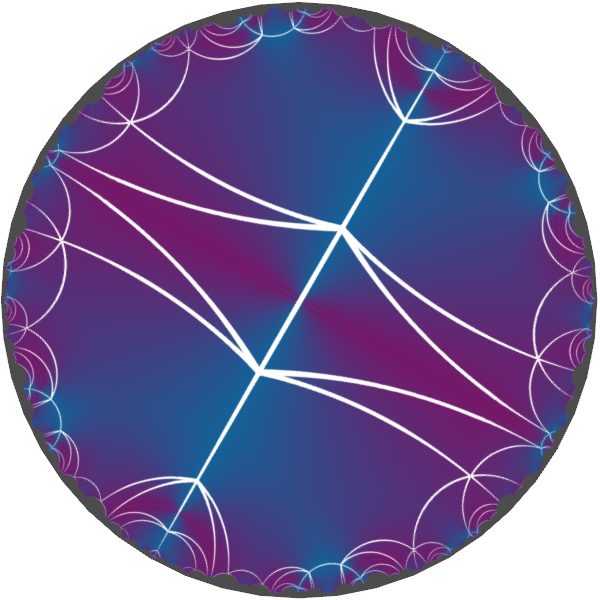

| Image |
h-net name |
Orbifold symbol |
Transitivity (Vert,Edge,Face) |
Vertex Degree |
2D Vertex Symbol |
 |
hqc988 |
*222222 |
(2,5,3) |
{6,6} |
{4.3.8.8.3.4}{3.8.8.3.8.8} |
s-nets
3 records listed.
| Surface |
Edge collapse |
Image |
s-net name |
Other names |
Space group |
Space group number |
Symmetry class |
Vertex degree(s) |
Vertices per primitive unit cell |
Transitivity (Vertex, Edge) |
|
P
|
False
|
|
sqc263
|
|
Pmmm |
47 |
orthorhombic |
{6,6} |
3 |
(2,5) |
|
G
|
False
|
|
sqc2413
|
|
C2/c |
15 |
monoclinic |
{6,6} |
6 |
(2,6) |
|
D
|
False
|
|
sqc2410
|
|
Imma |
74 |
orthorhombic |
{6,6} |
6 |
(2,5) |
Topological data
| Vertex degrees | {6,6} |
| 2D vertex symbol | {4.3.8.8.3.4}{3.8.8.3.8.8} |
| Dual tiling |  |
D-symbol
Genus-3 version with t-tau cuts labelled
<31.3:72:46 4 5 42 25 26 18 64 13 14 60 34 35 55 22 23 69 36 37 31 32 51 40 41 70 71 63 49 50 61 62 72 58 59 67 68,2 21 6 7 9 11 30 15 16 18 20 24 25 27 29 33 34 36 38 66 42 43 45 47 57 51 52 54 56 60 61 63 65 69 70 72,37 3 5 24 8 27 55 12 14 33 17 36 64 21 23 26 46 30 32 35 39 41 69 44 72 48 50 60 53 63 57 59 62 66 68 71:8 3 4 8 3 3 4 3,6 6 6 6 6 6> {(0, 62): 'tau1^-1', (0, 45): 't3^-1', (0, 34): 't1', (1, 29): 't1', (1, 2): 't1^-1', (2, 54): 't2*tau3^-1', (1, 56): 't2*tau3^-1*t1^-1*tau2*t3', (0, 63): 't2^-1', (0, 42): 't3*tau2*t1^-1*tau3^-1*t2', (2, 0): 'tau2^-1*t3^-1', (0, 60): 't2*tau3^-1*t1^-1*tau2*t3', (0, 43): 't3*tau2*t1^-1*tau3^-1*t2', (0, 53): 'tau1^-1', (2, 45): 't3^-1*tau2^-1', (2, 63): 't2^-1*tau3', (0, 24): 't1', (0, 36): 't3', (0, 61): 't2*tau3^-1*t1^-1*tau2*t3', (0, 33): 't1', (0, 54): 't2', (0, 25): 't1', (1, 65): 't2^-1*tau3*t1*tau2^-1*t3^-1', }
