U-tiling: UQC2512
h-net
1 record listed.

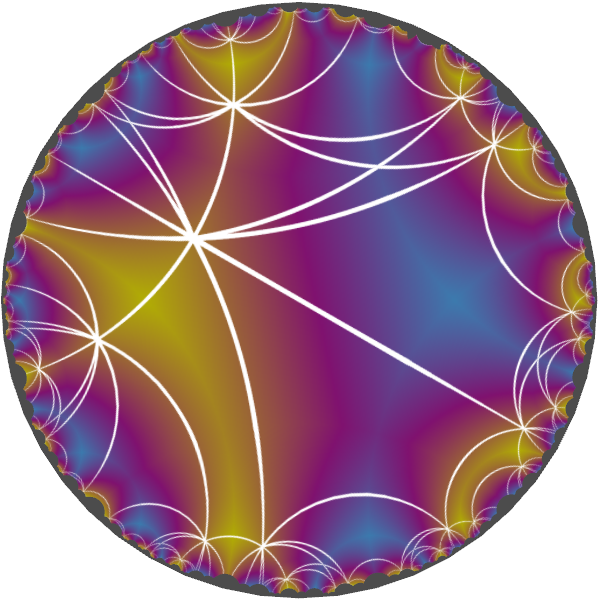

| Image |
h-net name |
Orbifold symbol |
Transitivity (Vert,Edge,Face) |
Vertex Degree |
2D Vertex Symbol |
 |
hqc1916 |
*222222 |
(2,6,5) |
{10,4} |
{4.4.4.3.3.3.3.4.4.4}{3.3.3.3} |
s-nets
3 records listed.
| Surface |
Edge collapse |
Image |
s-net name |
Other names |
Space group |
Space group number |
Symmetry class |
Vertex degree(s) |
Vertices per primitive unit cell |
Transitivity (Vertex, Edge) |
|
G
|
False
|
|
sqc4905
|
|
I212121 |
24 |
orthorhombic |
{10,4} |
6 |
(2,7) |
|
D
|
False
|
|
sqc862
|
|
P222 |
16 |
orthorhombic |
{4,10} |
3 |
(2,6) |
Topological data
| Vertex degrees | {10,4} |
| 2D vertex symbol | {4.4.4.3.3.3.3.4.4.4}{3.3.3.3} |
| Dual tiling |  |
D-symbol
Genus-3 version with t-tau cuts labelled
<116.1:96:25 50 51 16 17 30 31 10 11 60 37 62 63 42 43 22 23 72 74 75 40 41 34 35 84 86 87 46 47 96 73 64 65 78 79 58 59 85 90 91 70 71 88 89 82 83 94 95,2 4 6 8 12 34 59 14 16 18 20 24 46 71 26 28 30 32 36 83 38 40 42 44 48 95 50 52 54 56 60 82 62 64 66 68 72 94 74 76 78 80 84 86 88 90 92 96,13 3 5 7 9 11 24 15 17 19 21 23 37 27 29 31 33 35 48 39 41 43 45 47 61 51 53 55 57 59 72 63 65 67 69 71 85 75 77 79 81 83 96 87 89 91 93 95:4 4 4 3 3 4 3 3 4 3 3 4 3 3,10 4 4 10 10 10> {(0, 39): 'tau2^-1*t3^-1', (0, 16): 't1^-1', (0, 29): 't3', (0, 60): 't1', (0, 41): 'tau2^-1*t1', (1, 21): 't1^-1*tau2', (0, 53): 't2^-1*tau1^-1', (0, 62): 't1', (1, 46): 't3*tau1^-1*t2^-1*tau3*t1', (0, 61): 't1', (0, 65): 't2^-1*tau1^-1*t3*tau2', (1, 81): 'tau1*t2', (0, 87): 'tau2^-1*t3^-1', (1, 9): 't3^-1', (0, 88): 'tau2^-1*t3^-1', (0, 47): 't3*tau1^-1*t2^-1*tau3*t1', (1, 93): 'tau2^-1*t3^-1*tau1*t2', (2, 72): 't2^-1*tau3*t1', (0, 90): 'tau2^-1*t3^-1*tau1*t2', (0, 23): 'tau3', (2, 59): 't2^-1*tau3', (1, 22): 'tau3', (1, 58): 't2^-1', (0, 40): 'tau2^-1*t3^-1', (0, 30): 't3', (0, 11): 't2', (0, 42): 'tau2^-1*t1', (1, 82): 'tau1*t3^-1', (0, 54): 't2^-1*tau1^-1', (0, 35): 't3*tau1^-1', (2, 95): 't1^-1*tau3^-1*t2', (0, 15): 't1^-1', (2, 60): 'tau3^-1*t2', }
