U-tiling: UQC3523
h-net
1 record listed.

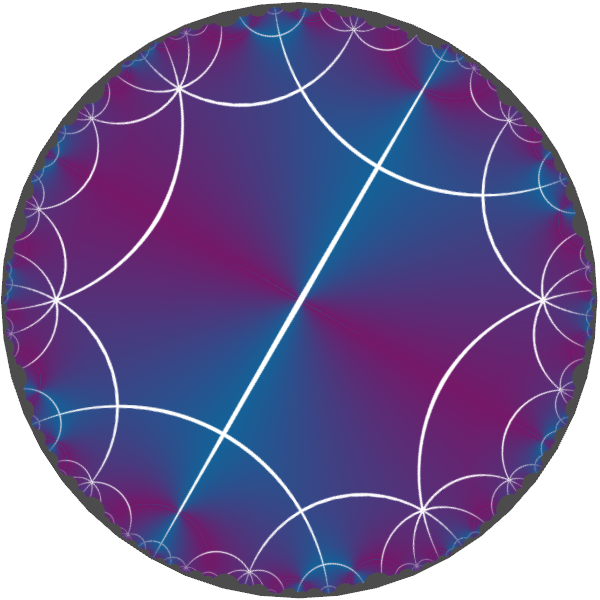

| Image |
h-net name |
Orbifold symbol |
Transitivity (Vert,Edge,Face) |
Vertex Degree |
2D Vertex Symbol |
 |
hqc667 |
*222222 |
(3,5,2) |
{8,4,4} |
{4.6.6.4.4.6.6.4}{6.6.6.6}{6.6.6.6} |
s-nets
3 records listed.
| Surface |
Edge collapse |
Image |
s-net name |
Other names |
Space group |
Space group number |
Symmetry class |
Vertex degree(s) |
Vertices per primitive unit cell |
Transitivity (Vertex, Edge) |
|
P
|
True
|
|
sqc53
|
|
Pmmm |
47 |
orthorhombic |
{4,4,6} |
3 |
(3,5) |
|
G
|
False
|
|
sqc1802
|
|
C2/c |
15 |
monoclinic |
{8,4,4} |
6 |
(3,5) |
|
D
|
False
|
|
sqc1800
|
|
Imma |
74 |
orthorhombic |
{8,4,4} |
6 |
(3,5) |
Topological data
| Vertex degrees | {8,4,4} |
| 2D vertex symbol | {4.6.6.4.4.6.6.4}{6.6.6.6}{6.6.6.6} |
| Dual tiling |  |
D-symbol
Genus-3 version with t-tau cuts labelled
<10.2:64:17 10 11 5 7 16 25 13 15 26 27 21 23 32 29 31 57 50 51 37 39 56 49 58 59 45 47 64 53 55 61 63,2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64,33 3 44 45 38 39 24 49 11 60 61 54 55 32 57 19 52 53 62 63 41 27 36 37 46 47 35 64 43 56 51 59:4 6 6 4 6 6,8 4 4 8 4 4> {(0, 58): 'tau1', (2, 60): 't2^-1', (0, 56): 't2^-1*tau3*t1*tau2^-1*t3^-1', (0, 57): 'tau1', (2, 56): 't2^-1*tau3', (0, 63): 'tau1', (2, 59): 't2^-1', (0, 50): 'tau1^-1', (0, 48): 't2*tau3^-1*t1^-1*tau2*t3', (0, 49): 'tau1^-1', (2, 48): 't2*tau3^-1', (0, 55): 'tau1^-1', (2, 51): 't2', (2, 40): 't3^-1*tau2^-1', (2, 43): 't3^-1', (2, 36): 't3', (2, 32): 't3*tau2', (2, 35): 't3', (0, 24): 't1', (2, 20): 't2^-1', (0, 16): 't1', (2, 4): 't3'}
