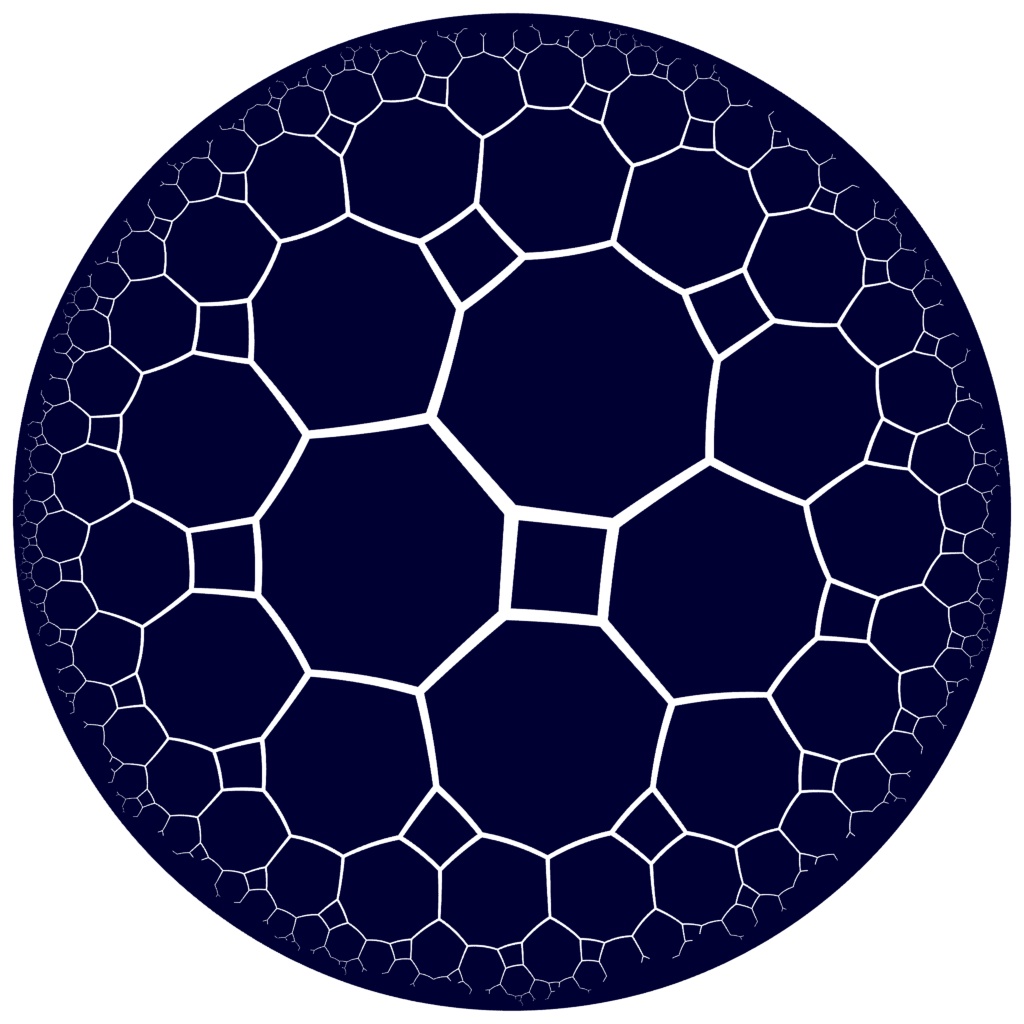

h-net: hqc1007
Topological data
| Orbifold symbol | *2223 |
| Transitivity (vertex, edge, ring) | (2,4,3) |
| Vertex degrees | {3,3} |
| 2D vertex symbol | {4.8.9}{9.8.8} |
| Vertex coordination sequence | [(3, 6, 10, 14, 22, 36, 48, 66, 105, 154), (3, 5, 9, 16, 22, 30, 48, 72, 99, 142)] |
| Delaney-Dress Symbol | <1007.2:9:1 2 3 5 7 8 9,2 4 5 8 9,3 8 6 7 9:4 9 8,3 3> |
| Dual net | hqc1171 |
Derived s-nets
s-nets with faithful topology
3 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc13767 | Pm-3m | 221 | cubic | {3,3} | 72 | (2,4) | |
|
sqc13766 | I4132 | 214 | cubic | {3,3,3} | 72 | (3,5) | |
|
sqc11724 | P4232 | 208 | cubic | {3,3} | 36 | (2,4) |
s-nets with edge collapse
No items to display.Derived U-tilings
1 record listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC1108 | *2223 | (2,4,3) | {3,3} | {4.8.9}{9.8.8} |
sqc13767
|
sqc13766
|
sqc11724
|
