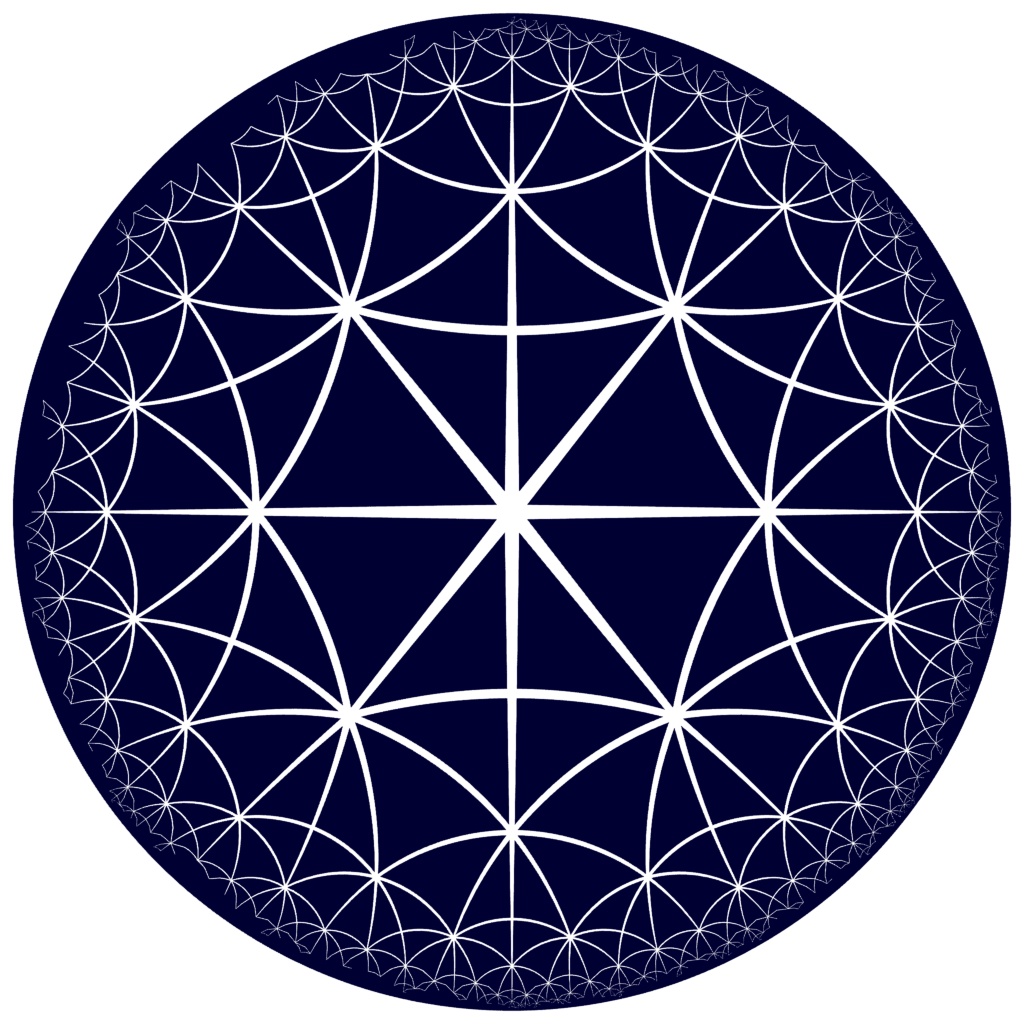

h-net: hqc1171
Topological data
| Orbifold symbol | *2223 |
| Transitivity (vertex, edge, ring) | (3,4,2) |
| Vertex degrees | {8,9,4} |
| 2D vertex symbol | {3.3.3.3.3.3.3.3}{3.3.3.3.3.3.3.3.3}{3.3.3.3} |
| Vertex coordination sequence | [(8, 28, 72, 200, 524, 1428, 3772, 10208, 27120, 73068), (9, 24, 75, 192, 525, 1380, 3759, 9936, 26865, 71424), (4, 18, 48, 136, 364, 966, 2596, 6948, 18616, 49818)] |
| Delaney-Dress Symbol | <1171.2:9:1 3 5 7 9,2 3 6 9 8,1 4 5 6 7 8 9:3 3,8 9 4> |
| Dual net | hqc1007 |
Derived s-nets
s-nets with faithful topology
3 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc13627 | Pm-3m | 221 | cubic | {8,9,4} | 32 | (3,4) | |
|
sqc13629 | I4132 | 214 | cubic | {8,9,4} | 32 | (3,5) | |
|
sqc11615 | P4232 | 208 | cubic | {9,4,8} | 16 | (3,4) |
s-nets with edge collapse
No items to display.Derived U-tilings
1 record listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC4057 | *2223 | (3,4,2) | {8,9,4} | {3.3.3.3.3.3.3.3}{3.3.3.3.3.3.3.... |
sqc13627
|
sqc13629
|
sqc11615
|
