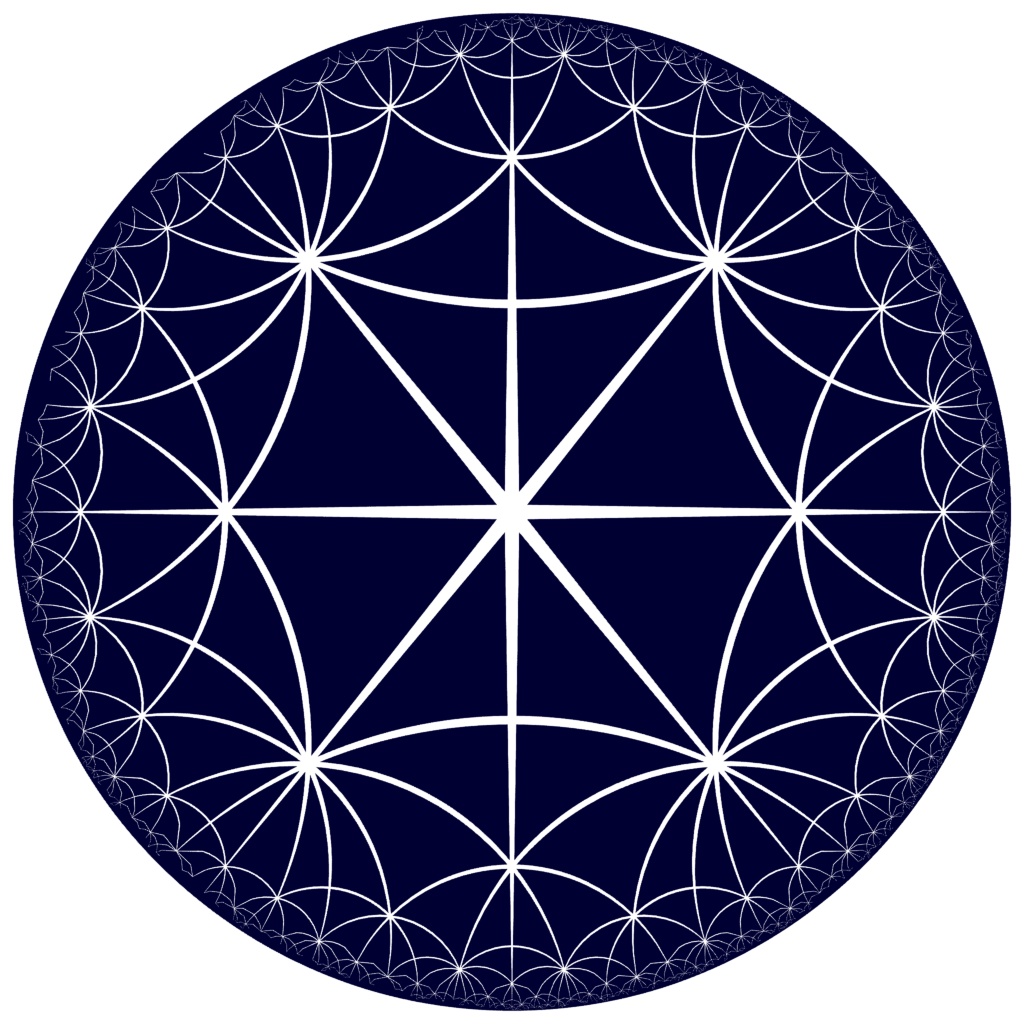

h-net: hqc1172
Topological data
| Orbifold symbol | *2224 |
| Transitivity (vertex, edge, ring) | (3,4,2) |
| Vertex degrees | {8,12,4} |
| 2D vertex symbol | {3.3.3.3.3.3.3.3}{3.3.3.3.3.3.3.3.3.3.3.3}{3.3.3.3} |
| Vertex coordination sequence | [(8, 40, 116, 464, 1448, 5464, 17780, 64896), (12, 32, 148, 432, 1708, 5360, 20148, 65760), (4, 24, 76, 284, 960, 3384, 11588, 40668, 139928)] |
| Delaney-Dress Symbol | <1172.2:9:1 3 5 7 9,2 3 6 9 8,1 4 5 6 7 8 9:3 3,8 12 4> |
| Dual net | hqc1011 |
Derived s-nets
s-nets with faithful topology
6 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc8602 | I4/mmm | 139 | tetragonal | {4,8,12} | 10 | (3,4) | |
|
sqc8844 | I4/mmm | 139 | tetragonal | {4,12,8} | 10 | (3,4) | |
|
sqc12636 | I41/acd | 142 | tetragonal | {8,12,4} | 20 | (3,5) | |
|
sqc12644 | I41/acd | 142 | tetragonal | {8,12,4} | 20 | (3,5) | |
|
sqc8561 | P42/nnm | 134 | tetragonal | {4,8,12} | 10 | (3,4) | |
|
sqc8630 | P42/nnm | 134 | tetragonal | {8,4,12} | 10 | (3,4) |
s-nets with edge collapse
No items to display.Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC4058 | *2224 | (3,4,2) | {8,12,4} | {3.3.3.3.3.3.3.3}{3.3.3.3.3.3.3.... |
sqc8602
|
sqc12644
|
sqc8561
|
 |
UQC4059 | *2224 | (3,4,2) | {8,12,4} | {3.3.3.3.3.3.3.3}{3.3.3.3.3.3.3.... |
sqc8844
|
sqc12636
|
sqc8630
|
