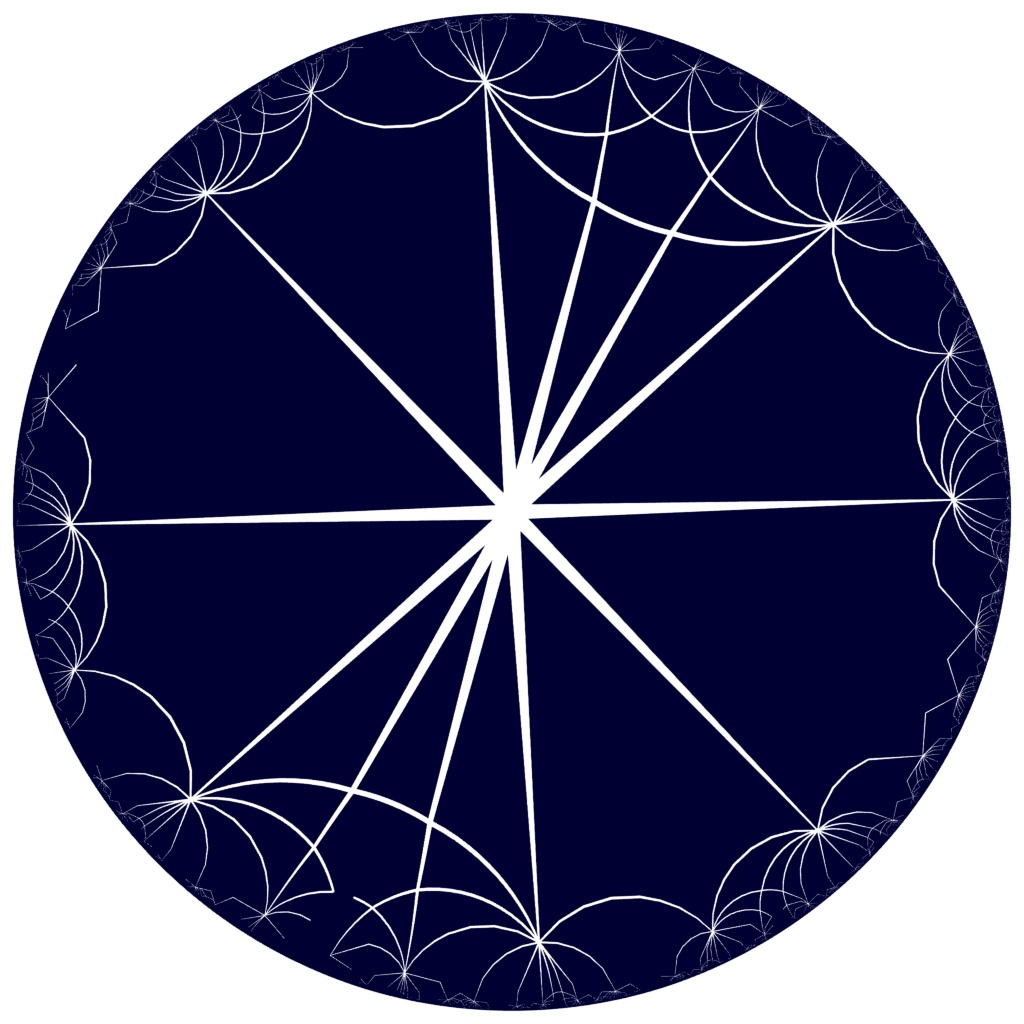

h-net: hqc1326
Topological data
| Orbifold symbol | *2626 |
| Transitivity (vertex, edge, ring) | (2,4,5) |
| Vertex degrees | {12,4} |
| 2D vertex symbol | {6.4.3.3.3.4.6.4.3.3.3.4}{3.3.6.3} |
| Vertex coordination sequence | [(4, 20, 138, 884, 5642, 35967, 229257), (12, 80, 512, 3264, 20804, 132612)] |
| Delaney-Dress Symbol | <1326.2:10:1 2 3 4 6 8 9 10,1 3 5 6 7 9 10,2 4 7 8 10:6 4 3 3 6,12 4> |
| Dual net | hqc1552 |
Derived s-nets
s-nets with faithful topology
4 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc7047 | R-3m | 166 | rhombohedral | {4,12} | 9 | (2,4) | |
|
sqc7045 | R-3m | 166 | rhombohedral | {4,12} | 9 | (2,4) | |
|
sqc7046 | R-3m | 166 | rhombohedral | {4,12} | 9 | (2,4) | |
|
sqc7049 | R-3m | 166 | rhombohedral | {4,12} | 9 | (2,4) |
s-nets with edge collapse
No items to display.Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC2408 | *2626 | (2,4,5) | {12,4} | {6.4.3.3.3.4.6.4.3.3.3.4}{3.3.6.3} |
sqc7047
|
sqc7046
|
sqc7049
|
 |
UQC2409 | *2626 | (2,4,5) | {12,4} | {6.4.3.3.3.4.6.4.3.3.3.4}{3.3.6.3} |
sqc7049
|
sqc7045
|
sqc7047
|
