s-net: sqc7047
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 9 |
| Edges per primitive translational unit | 30 |
| Transitivity (vertex,edge) | (2,4) |
| Vertex degrees | {4,12} |
| Vertex coordination sequence | [(4, 18, 73, 181, 332, 534, 758, 1070, 1360, 1790), (12, 54, 148, 286, 472, 686, 980, 1262, 1672, 2014)] |
| Wells’ vertex symbol | [3^3.4^2.5, 3^14.4^20.5^22.6^10] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 0, 0, 1, 1, 2, 1, 0, 0, 1, 2, 1, 0, 1, 1, 3, 0, 0, 0, 1, 3, 0, 1, 0, 1, 3, 1, 0, 0, 1, 3, 1, 1, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 1, 7, 0, 0, 0, 2, 3, 0, 0, -1, 2, 3, 0, 0, 0, 2, 3, 0, 1, -1, 2, 3, 0, 1, 0, 2, 4, 0, 0, 0, 2, 7, -1, 0, -1, 2, 8, 0, 0, 0, 2, 9, 0, 0, 0, 3, 5, 0, 0, 0, 3, 6, -1, -1, 0, 3, 8, 0, 0, 0, 3, 9, 0, -1, 1, 4, 6, 0, 0, 0, 4, 9, 0, 0, 0, 5, 7, 0, 0, 0, 5, 9, 0, -1, 1, 6, 8, 1, 1, 0, 7, 8, 1, 0, 1) |
Geometric data

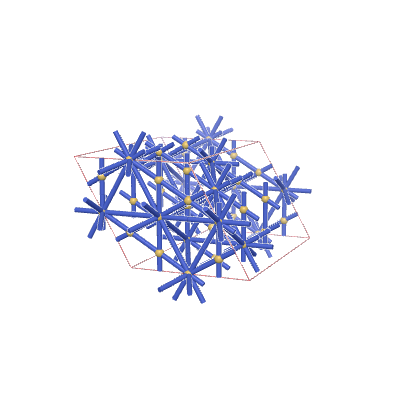

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: R-3m
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.5272 | 2.5272 | 4.0952 | 90.0 | 90.0 | 120.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.16667 | 0.33333 | 0 |
| 0 | 0.5 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: R-3m
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.06904 | 2.06904 | 2.57359 | 90.0 | 90.0 | 120.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.07746 | 0.15493 | 0.19234 |
| 0 | 0.5 | 0 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1326 | *2626 | (2,4,5) | {12,4} | {6.4.3.3.3.4.6.4.3.3.3.4}{3.3.6.3} |
