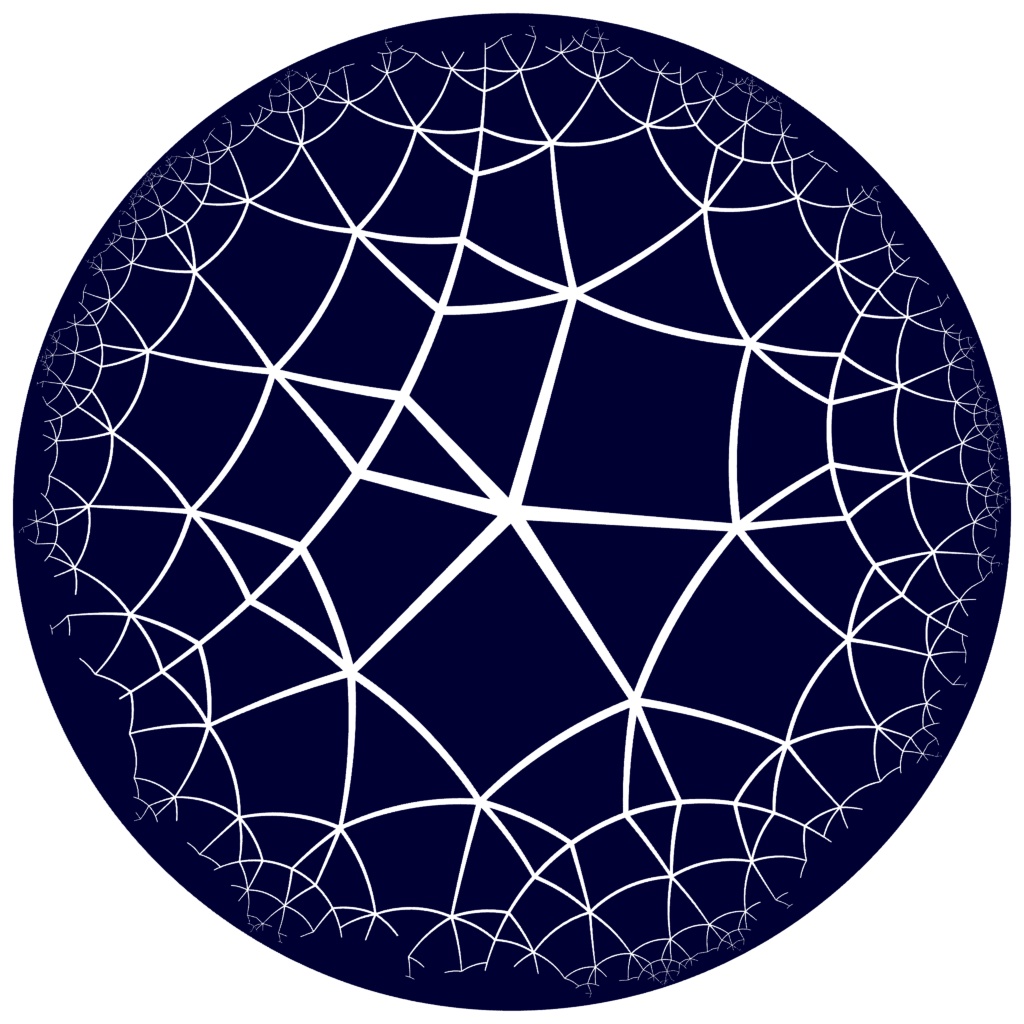

h-net: hqc1336
Topological data
| Orbifold symbol | *2223 |
| Transitivity (vertex, edge, ring) | (2,5,4) |
| Vertex degrees | {6,4} |
| 2D vertex symbol | {3.4.4.3.4.4}{4.4.3.3} |
| Vertex coordination sequence | [(4, 10, 26, 57, 112, 230, 468, 932, 1882, 3808), (6, 17, 35, 70, 144, 290, 581, 1175, 2370, 4768)] |
| Delaney-Dress Symbol | <1336.2:10:1 2 3 4 6 8 9 10,1 3 5 10 7 9,2 4 7 8 9 10:3 4 4 3,6 4> |
| Dual net | hqc1505 |
Derived s-nets
s-nets with faithful topology
3 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc13918 | Pm-3m | 221 | cubic | {4,6} | 48 | (2,5) | |
|
sqc13919 | I4132 | 214 | cubic | {4,6} | 48 | (2,6) | |
|
sqc12201 | P4232 | 208 | cubic | {4,6} | 24 | (2,5) |
s-nets with edge collapse
No items to display.Derived U-tilings
1 record listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC1769 | *2223 | (2,5,4) | {6,4} | {3.4.4.3.4.4}{4.4.3.3} |
sqc13918
|
sqc13919
|
sqc12201
|
