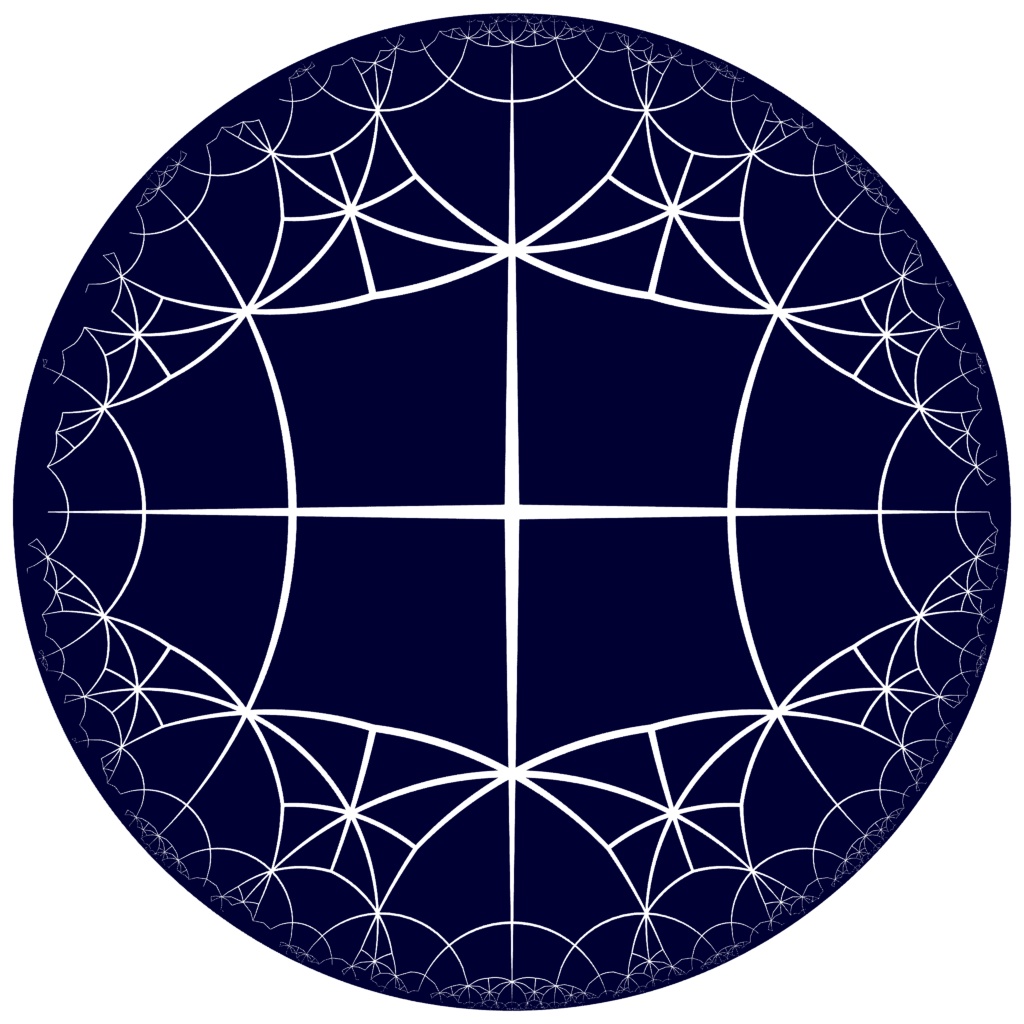

h-net: hqc1847
Topological data
| Orbifold symbol | *2224 |
| Transitivity (vertex, edge, ring) | (4,5,2) |
| Vertex degrees | {4,8,3,8} |
| 2D vertex symbol | {5.5.5.5}{5.3.3.5.5.3.3.5}{5.3.3}{3.3.3.3.3.3.3.3} |
| Vertex coordination sequence | [(4, 20, 44, 104, 228, 552, 1204, 2884, 6404, 15120), (8, 16, 48, 92, 252, 500, 1304, 2696, 6760, 14440), (3, 15, 28, 78, 163, 399, 870, 2100, 4621, 11001), (8, 20, 36, 116, 208, 580, 1148, 2996, 6184, 15548)] |
| Delaney-Dress Symbol | <1847.2:11:1 3 5 7 9 11,2 4 5 8 11 10,1 2 3 6 7 8 9 10 11:5 3,4 8 3 8> |
| Dual net | hqc1724 |
Derived s-nets
s-nets with faithful topology
6 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc10361 | I4/mmm | 139 | tetragonal | {8,3,4,8} | 18 | (4,5) | |
|
sqc10485 | I4/mmm | 139 | tetragonal | {3,8,8,4} | 18 | (4,5) | |
|
sqc13220 | I41/acd | 142 | tetragonal | {4,8,3,8} | 36 | (4,6) | |
|
sqc13239 | I41/acd | 142 | tetragonal | {4,8,3,8} | 36 | (4,6) | |
|
sqc10458 | P42/nnm | 134 | tetragonal | {3,4,8,8} | 18 | (4,5) | |
|
sqc10488 | P42/nnm | 134 | tetragonal | {8,3,4,8} | 18 | (4,5) |
s-nets with edge collapse
No items to display.Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC5021 | *2224 | (4,5,2) | {4,8,3,8} | {5.5.5.5}{5.3.3.5.5.3.3.5}{5.3.3... |
sqc10361
|
sqc13220
|
sqc10458
|
 |
UQC5022 | *2224 | (4,5,2) | {4,8,3,8} | {5.5.5.5}{5.3.3.5.5.3.3.5}{5.3.3... |
sqc10485
|
sqc13239
|
sqc10488
|
