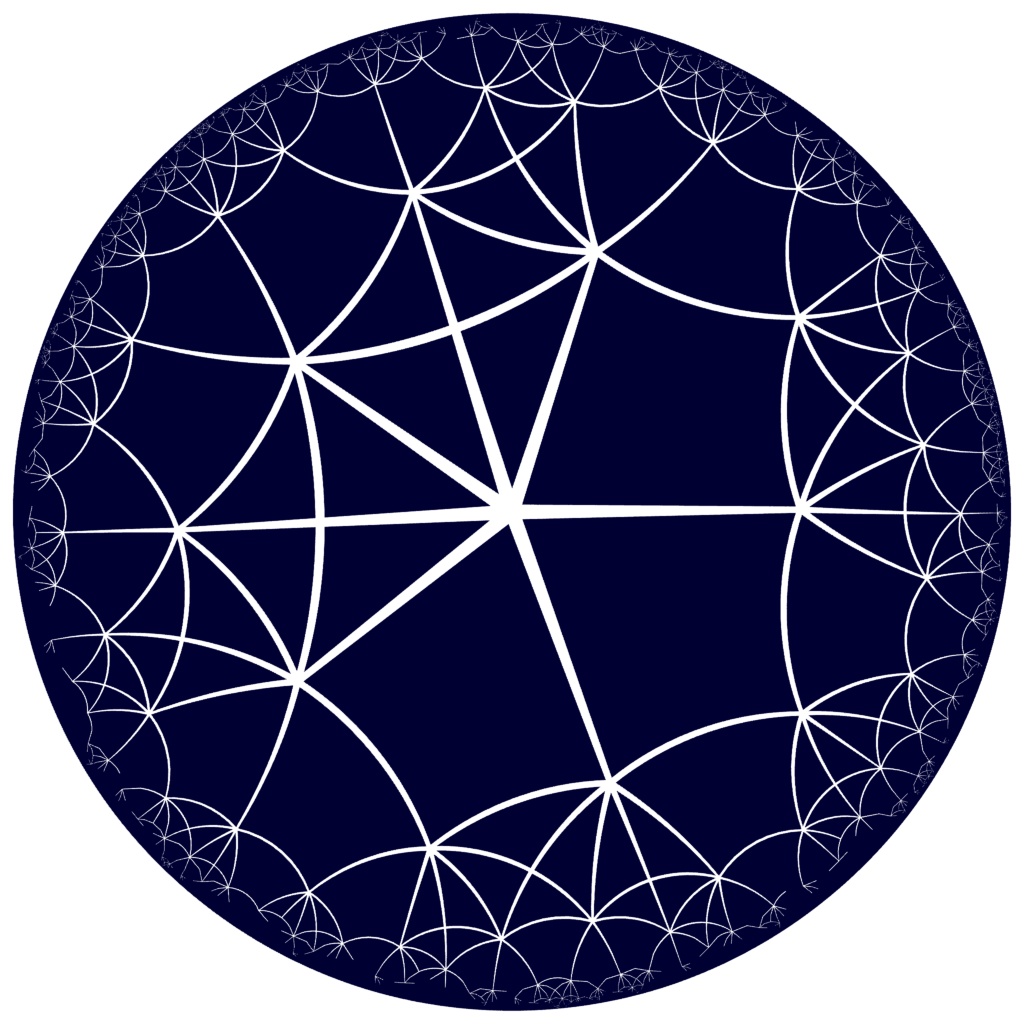

h-net: hqc952
Topological data
| Orbifold symbol | *2224 |
| Transitivity (vertex, edge, ring) | (2,4,4) |
| Vertex degrees | {7,4} |
| 2D vertex symbol | {4.4.3.3.3.3.4}{3.3.3.3} |
| Vertex coordination sequence | [(7, 21, 56, 147, 385, 1008, 2639, 6909, 18088, 47355), (4, 14, 48, 114, 312, 802, 2116, 5522, 14476, 37878)] |
| Delaney-Dress Symbol | <952.2:9:1 2 3 4 6 8 9,1 3 5 6 9 8,2 4 7 8 9:4 4 3 3,7 4> |
| Dual net | hqc1239 |
Derived s-nets
s-nets with faithful topology
6 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc2409 | P4/mmm | 123 | tetragonal | {7,4} | 6 | (2,4) | |
|
sqc8984 | I4/mmm | 139 | tetragonal | {7,4} | 12 | (2,4) | |
|
sqc12626 | I41/acd | 142 | tetragonal | {7,4} | 24 | (2,5) | |
|
sqc12700 | I41/acd | 142 | tetragonal | {7,4} | 24 | (2,5) | |
|
sqc8655 | P42/nnm | 134 | tetragonal | {4,7} | 12 | (2,4) | |
|
sqc8982 | P42/nnm | 134 | tetragonal | {4,7} | 12 | (2,4) |
s-nets with edge collapse
No items to display.Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC1487 | *2224 | (2,4,4) | {7,4} | {4.4.3.3.3.3.4}{3.3.3.3} |
sqc8984
|
sqc12700
|
sqc8982
|
 |
UQC1488 | *2224 | (2,4,4) | {7,4} | {4.4.3.3.3.3.4}{3.3.3.3} |
sqc2409
|
sqc12626
|
sqc8655
|
