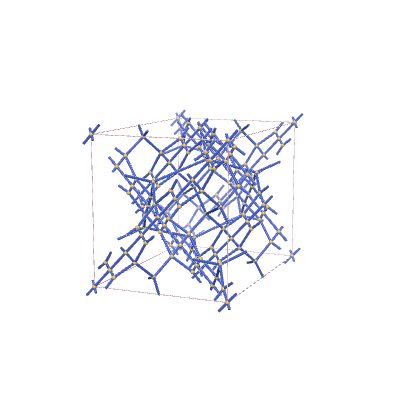

s-net: sqc11424
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 28 |
| Edges per primitive translational unit | 52 |
| Transitivity (vertex,edge) | (5,7) |
| Vertex degrees | {4,4,3,4,4} |
| Vertex coordination sequence | [(4, 12, 28, 56, 95, 137, 202, 300, 410, 554), (4, 8, 18, 38, 78, 124, 193, 278, 384, 519), (3, 7, 12, 28, 61, 110, 173, 256, 361, 484), (4, 8, 12, 28, 64, 112, 174, 254, 360, 488), (4, 6, 10, 18, 46, 97, 154, 237, 332, 456)] |
| Wells’ vertex symbol | [10^6, 4^2.6.10^2.11, 4^2.6, 4^4.6^2, 4^4.6^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 5, 0, 0, 0, 2, 6, 0, 0, 0, 3, 7, 0, 0, 0, 3, 8, 0, 0, 0, 3, 9, 0, 0, 0, 4, 10, 0, 0, 0, 4, 11, 0, 0, 0, 4, 12, 0, 0, 0, 5, 12, 0, 1, 0, 5, 13, 0, 0, 0, 5, 14, 0, 0, 0, 6, 8, 0, 0, 1, 6, 15, 0, 0, 0, 6, 16, 0, 0, 0, 7, 17, 0, 0, 0, 7, 18, 0, 0, 0, 8, 18, 0, 0, 0, 8, 19, 0, 0, 0, 9, 17, 0, -1, 0, 9, 19, 0, 0, 0, 10, 20, 0, 0, 0, 10, 21, 0, 0, 0, 11, 20, -1, 0, -1, 11, 22, 0, 0, 0, 12, 21, 0, 0, 0, 12, 22, 0, 0, 0, 13, 21, 0, 1, 0, 13, 23, 0, 0, 0, 14, 22, 0, 1, 0, 14, 23, -1, 0, -1, 15, 18, 0, 0, 1, 15, 24, 0, 0, 0, 16, 19, 0, 0, 1, 16, 24, 0, -1, 0, 17, 25, 0, 0, 0, 17, 26, 0, 0, 0, 18, 26, 0, 0, 0, 19, 26, 0, -1, 0, 20, 25, 0, -1, 1, 20, 27, 0, 0, 0, 21, 27, 0, 0, 0, 22, 27, -1, 0, -1, 23, 27, 0, 1, 0, 23, 28, 0, 0, 0, 24, 26, 0, 0, 1, 24, 28, -1, 0, 0, 25, 28, 0, 0, 0, 25, 28, 0, 1, -1) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Fddd
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 5.63976 | 6.03854 | 8.06227 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.125 | 0.44048 | 0.125 |
| 0.20312 | 0.32143 | 0.03125 |
| 0.15625 | 0.07738 | 0 |
| 0 | 0 | 0 |
| 0.125 | 0.125 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Fddd
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.71649 | 7.52423 | 2.94945 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.125 | 0.50167 | 0.125 |
| 0.30426 | 0.11863 | 0.00313 |
| 0.17951 | 0.2564 | 0.25145 |
| 0 | 1 | 0 |
| 0.125 | 0.125 | 0.25164 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2238 | *22222 | (5,6,2) | {4,4,3,4,4} | {10.10.10.10}{10.4.4.10}{10.4.4}... |
