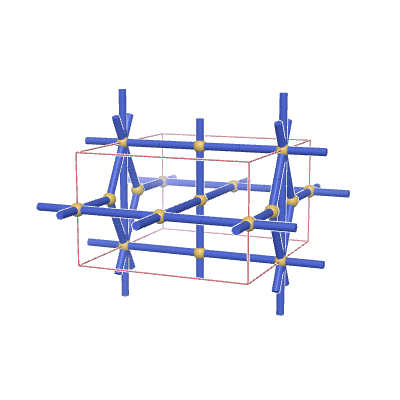

s-net: sqc1475



Systre crystallographic geometry file (.cgd)

Links to this net in other databases

topcryst

Topological data

Vertices per primitive translational unit 7
Edges per primitive translational unit 15
Transitivity (vertex,edge)(6,7)
Vertex degrees {3,4,4,4,4,8}
Vertex coordination sequence [(3, 14, 31, 68, 103, 172, 226, 339, 412, 570), (4, 10, 32, 58, 114, 158, 260, 322, 464, 542), (4, 20, 36, 74, 114, 188, 242, 368, 438, 604), (4, 12, 24, 66, 96, 182, 232, 358, 430, 590), (4, 12, 40, 62, 128, 168, 274, 336, 478, 560), (8, 20, 44, 74, 128, 180, 272, 346, 484, 566)]
Wells’ vertex symbol [3.6^2, 6^4.8^2, 5^4.6.8, 6^4.8^2, 5.6^4.8, 3^4.4^2.5^4.6^8.8^4.9^4.10^2]
Systre key (3, 1, 1, -1, 0, 0, 1, 2, -1, 0, 0, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 3, 0, 1, 0, 1, 4, -1, 0, 0, 1, 4, 0, 0, 0, 2, 5, 0, 0, 0, 3, 6, -1, 0, 0, 3, 6, 0, 0, 0, 4, 5, 0, 0, 1, 5, 7, 0, 0, 0, 5, 7, 0, 1, 0, 6, 7, 0, 0, 0, 6, 7, 0, 0, 1)

Geometric data

Systre equilibrium placement (barycentric embedding) maximising unit cell volume

Spacegroup: Pmmm

Parameters:

a b c alpha beta gamma
2.28981 1.44834 2.50756 90.0 90.0 90.0

Vertex positions:

X-pos Y-pos Z-pos
0 0.5 0.33333
0 0.5 0
0.5 0 0.5
0.5 0.5 0
0.5 0.5 0.5
0 0 0.5

Edge end points:

Systre coordinates favouring equal edge-lengths

Spacegroup: Pmmm

Parameters:

a b c alpha beta gamma
2.22027 1.4784 2.52029 90.0 90.0 90.0

Vertex positions:

X-pos Y-pos Z-pos
0 0.5 0.34182
0 0.5 0
0.5 0 0.5
0.5 0.5 0
0.5 0.5 0.5
0 0 0.5

Edge end points:

Hyperbolic sources

h-nets with faithful topology

1 record listed.
Image h-net name Orbifold symbol Transitivity (Vert,Edge,Face) Vertex Degree 2D Vertex Symbol
Net details hqc2404 *222222 (6,7,2) {8,3,4,4,4,4} {3.6.6.3.3.6.6.3}{3.6.6}{6.6.6.6...

h-nets with edge collapse

No items to display.
