s-net: sqc1494
















					Systre crystallographic geometry file (.cgd)











Links to this net in other databases





			topcryst










Topological data





Vertices per primitive translational unit 7


Edges per primitive translational unit 15


Transitivity (vertex,edge)(6,7)


Vertex degrees {4,6,4,4,4,4}


Vertex coordination sequence  [(4, 12, 20, 39, 63, 110, 152, 228, 294, 406), (6, 10, 22, 30, 58, 88, 152, 204, 304, 380), (4, 12, 16, 32, 44, 84, 128, 210, 272, 390), (4, 8, 20, 32, 58, 92, 154, 204, 294, 376), (4, 10, 26, 44, 82, 124, 190, 250, 354, 434), (4, 12, 28, 52, 84, 138, 192, 272, 348, 470)]


Wells’ vertex symbol [4^5.6, 4^6.6^6.7^2.8, 4^4.6^2, 4^4.6^2, 4.6.7^4, 6^4.8.10]


Systre key (3, 1, 1, -1, 0, 0, 1, 2, 0, 0, 0, 1, 2, 0, 1, 0, 2, 3, 0, 0, 0, 2, 4, 0, 0, 0, 3, 5, 0, 0, 0, 3, 6, -1, 0, 0, 3, 6, 0, 0, 0, 4, 5, 0, 0, 1, 4, 6, -1, 0, 0, 4, 6, 0, 0, 0, 5, 7, -1, 0, 0, 5, 7, 0, 0, 0, 6, 7, 0, 0, 0, 6, 7, 0, 0, 1)






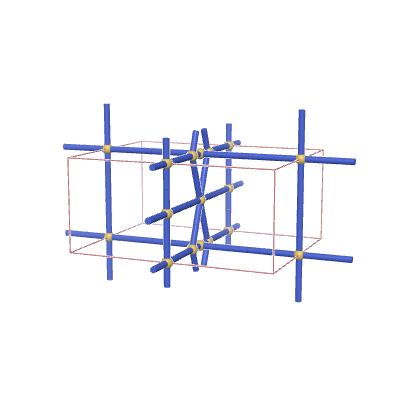

Geometric data



Systre equilibrium placement (barycentric embedding) maximising unit cell volume





 Spacegroup: Pmmm



 Parameters:



 a   b   c   alpha   beta   gamma



			 3.42515
			 1.5332
			 2.58991
			 90.0
			 90.0
			 90.0








 Vertex positions:




				 X-pos
				 Y-pos
				 Z-pos





						 0.5
						 0
						 0.375




						 0.5
						 0.5
						 0.5




						 0.5
						 0.5
						 0




						 0.5
						 0
						 0




						 0.5
						 0
						 0.5




						 0
						 0
						 0.5







Edge end points:











Systre coordinates favouring equal edge-lengths





 Spacegroup: Pmmm




 Parameters:



 a   b   c   alpha   beta   gamma



			 2.31264
			 1.38691
			 2.7221
			 90.0
			 90.0
			 90.0








Vertex positions:




					 X-pos
					 Y-pos
					 Z-pos





							 0.5
							  0
							  0.17815




							 0.5
							  0.5
							  0.5




							 0.5
							  0.5
							  0




							 0.5
							  0
							  0




							 0.5
							  0
							  0.5




							 0
							  0
							  0.5








Edge end points:















Hyperbolic sources





h-nets with faithful topology




		1 record listed.





			h-net name
			Orbifold symbol
			Transitivity (Vert,Edge,Face)
			Vertex Degree
			2D Vertex Symbol






					Net details
					hqc2409

				*222222
				 (6,7,2)
				{4,4,4,6,4,4}
				{7.7.7.7}{7.7.7.7}{7.4.4.7}{7.4....











h-nets with edge collapse



 No items to display.
