s-net: sqc1884
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 6 |
| Edges per primitive translational unit | 16 |
| Transitivity (vertex,edge) | (2,4) |
| Vertex degrees | {4,6} |
| Vertex coordination sequence | [(4, 14, 46, 68, 150, 180, 274, 348, 466, 532), (6, 20, 47, 91, 141, 203, 281, 367, 463, 579)] |
| Wells’ vertex symbol | [3^2.6^4, 3^2.4^3.6^8.7^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 0, 1, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 3, 0, -1, 0, 2, 4, 0, -1, 0, 2, 6, 0, 0, 0, 3, 5, -1, 1, 1, 3, 6, 0, 0, 1, 4, 5, 0, 1, 1, 4, 6, 1, 0, 1, 5, 6, 0, 0, 0, 5, 6, 1, -1, 0, 5, 6, 1, 0, 0) |

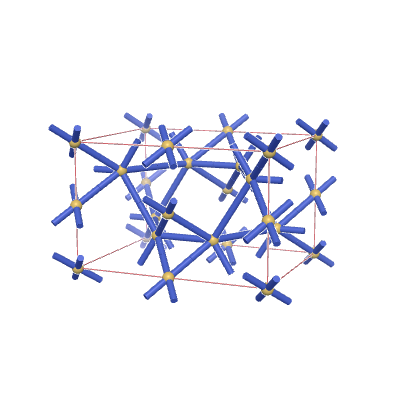

Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 3.01827 | 1.90901 | 2.33814 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0.15 | 0.25 | 0.25 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.92966 | 1.77085 | 2.37401 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0.17067 | 0.25 | 0.31352 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc644 | *22222 | (2,4,3) | {6,4} | {4.6.3.3.6.4}{6.3.6.3} |
