s-net: sqc2082
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 16 |
| Transitivity (vertex,edge) | (3,4) |
| Vertex degrees | {3,3,4} |
| Vertex coordination sequence | [(3, 6, 13, 26, 51, 78, 111, 148, 189, 240), (3, 5, 10, 25, 53, 74, 117, 145, 194, 233), (4, 10, 20, 36, 62, 82, 112, 150, 196, 238)] |
| Wells’ vertex symbol | [4.10^2, 4.10^2, 10.11^4.12] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 5, 0, 0, 0, 2, 6, 0, 0, 0, 3, 7, 0, 0, 0, 3, 8, 0, 0, 0, 4, 7, 0, 1, 0, 4, 8, 0, 1, 0, 5, 9, 0, 0, 0, 5, 10, 0, 0, 0, 6, 9, 0, 0, 1, 6, 10, 0, 0, 1, 7, 8, 0, 0, -1, 9, 10, 0, -1, 0) |
Geometric data

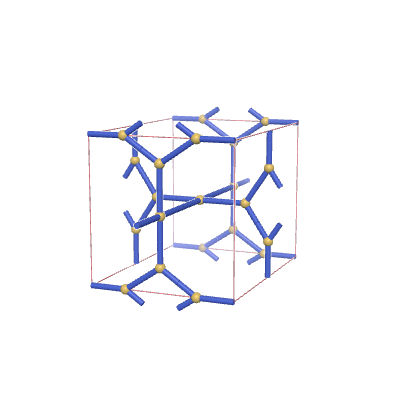

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: P42/mmc
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.65436 | 2.65436 | 3.4262 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.5 | 0.16667 | 0 |
| 0.25 | 0 | 0 |
| 0.5 | 0.5 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: P42/mmc
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.82286 | 2.82286 | 2.00013 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.5 | 0.14576 | 0 |
| 0 | 0.17713 | 0.5 |
| 0.5 | 0.5 | 0 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc832 | *22222 | (3,4,2) | {4,3,3} | {12.12.12.12}{12.4.12}{12.12.4} |
