s-net: sqc2099
 |
|

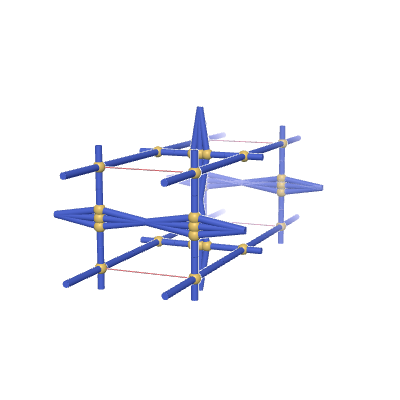

| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 8 |
| Edges per primitive translational unit | 16 |
| Transitivity (vertex,edge) | (3,5) |
| Vertex degrees | {4,4,4} |
| Vertex coordination sequence | [(4, 8, 16, 40, 88, 162, 262, 384, 548, 750), (4, 10, 24, 55, 113, 193, 301, 436, 612, 827), (4, 12, 32, 66, 124, 200, 310, 448, 628, 836)] |
| Wells’ vertex symbol | [4^4.6^2, 4^2.6.8^2.10, 8^5.10] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 2, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 3, -1, 0, 0, 2, 4, 0, 1, 0, 3, 3, -1, 0, 0, 4, 5, 0, 0, 0, 4, 5, 0, 0, 1, 5, 6, 0, 0, 0, 5, 7, 0, 0, 0, 6, 7, -2, -1, 0, 6, 7, 0, 1, 0, 6, 8, 0, 0, 0, 7, 8, 1, 0, 0, 8, 8, -1, -1, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: P42/mmc
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.49965 | 1.49965 | 3.92006 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.5 | 0 |
| 0 | 0.58333 | 0 |
| 0 | 0 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: P42/mmc
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 0.95737 | 0.95737 | 2.38098 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.5 | 0 |
| 0 | 0.0413 | 0 |
| 0 | 0 | 0 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc750 | *22222 | (3,5,2) | {4,4,4} | {4.4.4.4}{4.8.8.4}{8.8.8.8} |
