s-net: sqc2130
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 6 |
| Edges per primitive translational unit | 16 |
| Transitivity (vertex,edge) | (2,4) |
| Vertex degrees | {4,6} |
| Vertex coordination sequence | [(4, 14, 54, 108, 194, 292, 402, 536, 706, 856), (6, 20, 62, 130, 212, 316, 432, 576, 730, 904)] |
| Wells’ vertex symbol | [3^2.6^2.7^2, 3^2.4^3.6^3.7^6.8] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 4, 1, 0, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 2, 3, 0, 1, 0, 2, 4, 0, 0, 0, 2, 5, 0, 0, 1, 3, 4, 2, 1, 1, 3, 5, 0, -1, 1, 3, 5, 1, 1, 1, 3, 6, 1, 0, 1, 4, 5, 0, 1, 1, 4, 6, 0, 0, 0, 5, 6, 1, 1, 0) |
Geometric data

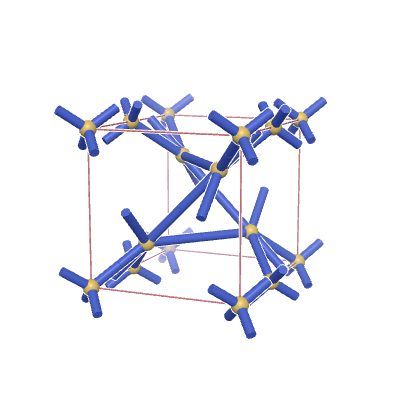

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: P4222
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.67823 | 1.67823 | 1.93718 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0.25 | 0.25 | 0.75 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: P4222
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.61316 | 1.61316 | 1.99377 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0 |
| 0.28853 | 0.71147 | 0.25 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc644 | *22222 | (2,4,3) | {6,4} | {4.6.3.3.6.4}{6.3.6.3} |
