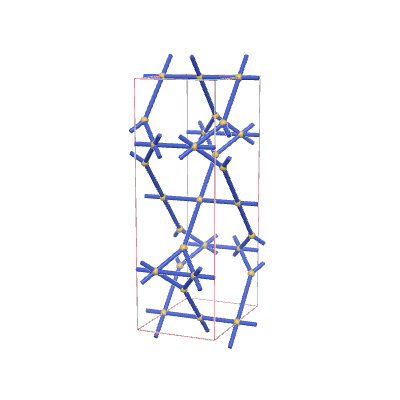

s-net: sqc2143
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 8 |
| Edges per primitive translational unit | 16 |
| Transitivity (vertex,edge) | (3,4) |
| Vertex degrees | {3,4,6} |
| Vertex coordination sequence | [(3, 10, 19, 40, 70, 98, 137, 180, 238, 282), (4, 10, 28, 44, 62, 98, 156, 184, 220, 284), (6, 10, 22, 42, 76, 104, 134, 180, 244, 294)] |
| Wells’ vertex symbol | [3.7^2, 7^5.10, 3^4.4^2.7^4.8^5] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 4, 2, 1, 0, 1, 5, 0, 0, 0, 1, 6, 0, 0, 0, 2, 4, 0, 0, 0, 2, 7, 0, 0, 0, 3, 4, 0, 0, 0, 3, 8, 0, 0, 0, 4, 5, -2, -1, 0, 4, 6, -2, -1, 0, 5, 8, 0, 1, 1, 6, 7, 0, 0, 1, 7, 8, -1, 0, 0, 7, 8, 1, 1, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.92974 | 5.78853 | 2.89354 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.16667 | 0.16667 |
| 0 | 0 | 0.5 |
| 0.25 | 0.25 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmma
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.00003 | 5.27556 | 2.64012 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.134 | 0.23208 |
| 0 | 0 | 0.5 |
| 0.25 | 0.25 | 0 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc795 | *22222 | (3,4,2) | {6,3,4} | {3.10.3.3.10.3}{3.10.10}{10.10.1... |
