s-net: sqc2240
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 6 |
| Edges per primitive translational unit | 17 |
| Transitivity (vertex,edge) | (2,7) |
| Vertex degrees | {6,5} |
| Vertex coordination sequence | [(6, 18, 39, 69, 107, 154, 210, 274, 347, 429), (5, 14, 31, 58, 95, 140, 193, 256, 327, 406)] |
| Wells’ vertex symbol | [3.4^9.5.6^4, 3.4^6.6^3] |
| Systre key | (3, 1, 1, -1, 0, 0, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 2, -1, 0, 0, 2, 3, 0, 1, 0, 2, 4, 0, 0, 1, 2, 6, 0, 0, 0, 3, 3, -1, 0, 0, 3, 4, 0, 0, 1, 3, 5, 0, 0, 0, 4, 4, -1, 0, 0, 4, 6, 0, 0, -1, 5, 5, -1, 0, 0, 5, 6, 0, -1, -1, 6, 6, -1, 0, 0) |
Geometric data

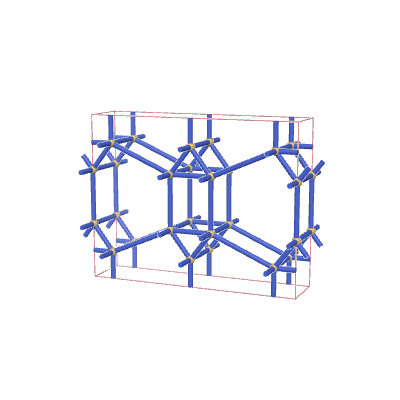

Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Cmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.44742 | 3.44517 | 0.99427 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.1 | 0.16667 | 0 |
| 0 | 0.33333 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Cmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 3.00317 | 3.73133 | 0.99999 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.16652 | 0.13402 | 0 |
| 0 | 0.36604 | 0 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2439 | *222222 | (2,8,7) | {6,5} | {4.4.3.4.4.4}{3.4.4.4.4} |
