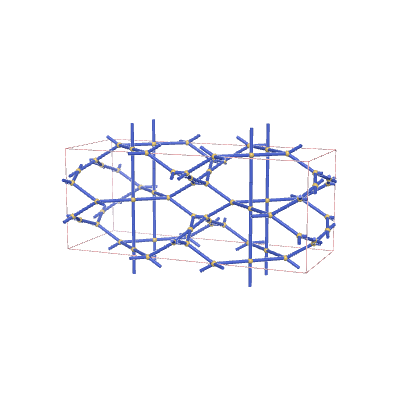

s-net: sqc3826
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 10 |
| Edges per primitive translational unit | 20 |
| Transitivity (vertex,edge) | (4,5) |
| Vertex degrees | {4,4,4,4} |
| Vertex coordination sequence | [(4, 8, 17, 36, 64, 113, 157, 213, 265, 348), (4, 12, 25, 46, 80, 116, 175, 222, 292, 348), (4, 6, 16, 30, 64, 110, 152, 214, 260, 336), (4, 12, 32, 58, 84, 122, 164, 232, 290, 356)] |
| Wells’ vertex symbol | [3^2.4.6.7^2, 6^2.7^4, 3^2.7^2.8^2, 6^4.8.9] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 3, 0, 1, 0, 2, 3, 1, 0, 0, 2, 6, 0, 0, 0, 3, 6, -1, -1, 0, 4, 7, 0, 0, 0, 4, 8, 0, 0, 0, 4, 9, 0, 0, 0, 5, 7, -1, 0, 0, 5, 9, 0, 1, 0, 5, 10, 0, 0, 0, 6, 8, 0, 0, 1, 6, 10, 0, 0, 1, 7, 8, 0, 0, 0, 7, 10, 1, 0, 0, 8, 9, 0, 0, 0, 9, 10, 0, -1, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Fmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 8.08368 | 3.29901 | 3.11037 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.02778 | 0.33333 | 0 |
| 0.36111 | 0 | 0 |
| 0 | 0.25 | 0.25 |
| 0.25 | 0 | 0.25 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Fmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 8.08306 | 2.00026 | 3.3275 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.06186 | 0.37034 | 0 |
| 0.68134 | 0 | 0 |
| 0 | 0.25 | 0.25 |
| 0.25 | 0 | 0.25 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1483 | *22222 | (4,5,2) | {4,4,4,4} | {3.7.7.3}{3.7.3.7}{7.7.7.7}{7.7.... |
