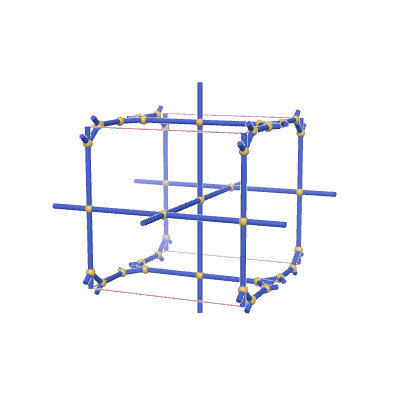

s-net: sqc4293
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 22 |
| Transitivity (vertex,edge) | (4,6) |
| Vertex degrees | {3,4,4,4} |
| Vertex coordination sequence | [(3, 5, 10, 23, 45, 86, 135, 213, 301, 380), (4, 6, 16, 32, 64, 120, 178, 266, 344, 456), (4, 12, 36, 70, 112, 182, 232, 338, 412, 542), (4, 12, 24, 58, 96, 162, 228, 310, 408, 514)] |
| Wells’ vertex symbol | [3.8^2, 3^2.4.8^2.9, 8^5.10, 8^5.12] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 0, 1, 0, 1, 3, 0, 0, 0, 1, 3, 1, 0, 0, 2, 4, 0, 0, 0, 2, 4, 0, 0, 1, 3, 5, 0, 0, 0, 3, 6, 0, 0, 0, 4, 7, 0, 0, 0, 4, 8, 0, 0, 0, 5, 6, 0, 0, -1, 5, 9, 0, 0, 0, 5, 10, 0, 0, 0, 6, 9, 0, 0, 1, 6, 10, 0, 0, 1, 7, 8, -1, 0, 0, 7, 11, 0, 0, 0, 7, 12, 0, 0, 0, 8, 11, 1, 0, 0, 8, 12, 1, 0, 0, 9, 12, 0, 0, 0, 10, 11, 0, 1, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: P42/mmc
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 3.14269 | 3.14269 | 3.44365 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0.125 |
| 0 | 0.1 | 0 |
| 0.5 | 0.5 | 0 |
| 0 | 0.5 | 0 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: P42/mmc
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.3902 | 2.3902 | 1.92358 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0 | 0.00019 |
| 0 | 0.20043 | 0 |
| 0.5 | 0.5 | 0 |
| 0 | 0.5 | 0 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1767 | *22222 | (4,6,2) | {3,4,4,4} | {8.3.8}{8.8.3.3}{8.8.8.8}{8.8.8.8} |
