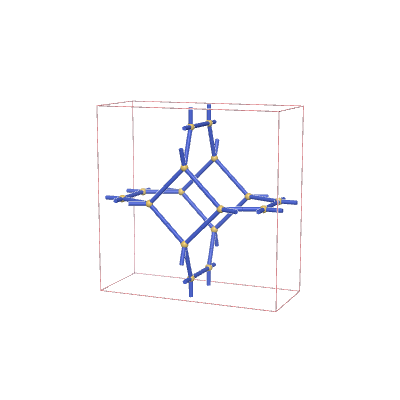

s-net: sqc5494
 |
|
| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 24 |
| Transitivity (vertex,edge) | (2,5) |
| Vertex degrees | {4,4} |
| Vertex coordination sequence | [(4, 9, 17, 26, 38, 60, 89, 111, 126, 152), (4, 8, 15, 28, 41, 51, 70, 104, 141, 167)] |
| Wells’ vertex symbol | [3.4.8^4, 3.4^2.5.6.7] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 3, 0, 0, 0, 2, 3, 1, 0, 0, 2, 6, 0, 0, 0, 3, 7, 0, 0, 0, 4, 8, 0, 0, 0, 4, 9, 0, 0, 0, 4, 10, 0, 0, 0, 5, 10, 0, 0, 0, 5, 11, 0, 0, 0, 5, 12, 0, 0, 0, 6, 7, 0, 0, 0, 6, 7, 1, 0, 0, 6, 10, 0, 1, 0, 7, 10, 0, 1, 0, 8, 9, 0, 0, 0, 8, 9, 1, 0, 0, 8, 11, 0, 0, 1, 9, 12, 0, 0, 1, 11, 12, 0, 0, 0, 11, 12, 1, 0, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: P4/mmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.53467 | 4.53467 | 1.85127 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.2 | 0 |
| 0 | 0.4 | 0.2 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: P4/mmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 4.1463 | 4.1463 | 1.99998 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0 | 0.17054 | 0 |
| 0 | 0.37941 | 0.25 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
2 records listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc1935 | *2224 | (2,5,5) | {4,4} | {4.8.3.4}{3.8.4.8} |
 |
hqc1936 | *2244 | (2,5,5) | {4,4} | {4.16.3.4}{3.16.4.16} |
