s-net: sqc7092
 |
|

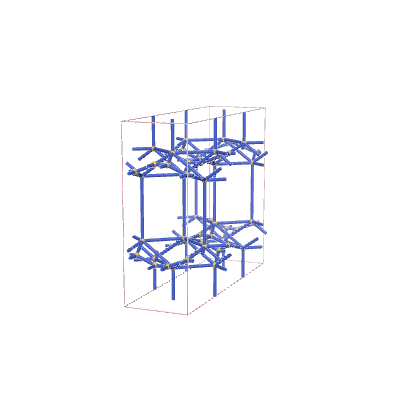

| Systre crystallographic geometry file (.cgd) |
Links to this net in other databases
| topcryst |
Topological data
| Vertices per primitive translational unit | 12 |
| Edges per primitive translational unit | 30 |
| Transitivity (vertex,edge) | (2,7) |
| Vertex degrees | {4,7} |
| Vertex coordination sequence | [(4, 10, 26, 61, 111, 168, 235, 316, 407, 504), (7, 23, 50, 86, 132, 191, 261, 338, 425, 527)] |
| Wells’ vertex symbol | [3.4^3.5^2, 3.4^10.5^2.6^6.8^2] |
| Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 3, 0, 1, 0, 1, 3, 1, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 6, 0, 0, 0, 2, 7, 0, 0, 0, 2, 8, 0, 0, 0, 2, 8, 0, 1, 0, 2, 8, 1, 0, 0, 3, 8, 0, 0, 0, 3, 8, 1, 0, 0, 3, 9, 0, 0, 0, 3, 10, 0, 0, 0, 4, 5, 0, 0, 0, 4, 6, 0, 0, 1, 4, 10, 0, 0, 0, 5, 7, 0, 0, 1, 5, 9, 1, 0, 0, 6, 7, 0, 0, 0, 6, 11, 0, 0, 0, 7, 12, 0, 0, 0, 8, 11, 0, 0, 0, 8, 12, -1, 0, 0, 9, 10, 0, 0, 0, 9, 12, -1, 0, 1, 10, 11, 0, 0, 1, 11, 12, -1, 0, 0) |
Geometric data
Systre equilibrium placement (barycentric embedding) maximising unit cell volume
Spacegroup: Fmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 2.11831 | 5.66642 | 6.83465 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.1 | 0.27273 | 0.0625 |
| 0 | 0.18182 | 0.3125 |
Edge end points:
Systre coordinates favouring equal edge-lengths
Spacegroup: Fmmm
Parameters:
| a | b | c | alpha | beta | gamma |
|---|---|---|---|---|---|
| 1.57648 | 3.2327 | 6.61892 | 90.0 | 90.0 | 90.0 |
Vertex positions:
| X-pos | Y-pos | Z-pos |
|---|---|---|
| 0.18293 | 0.09886 | 0.07554 |
| 0 | 0.15473 | 0.29649 |
Edge end points:
Hyperbolic sources
h-nets with faithful topology
1 record listed.| Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
|---|---|---|---|---|---|
 |
hqc2398 | *22222 | (2,7,6) | {4,7} | {4.4.3.4}{3.4.4.4.4.4.4} |
