Systre crystallographic geometry file (.cgd) |
topcryst |

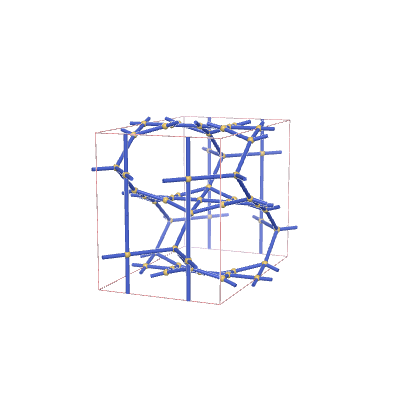

Vertices per primitive translational unit | 16 |
Edges per primitive translational unit | 30 |
Transitivity (vertex,edge) | (6,7) |
Vertex degrees | {3,4,4,4,4,4} |
Vertex coordination sequence | [(3, 7, 12, 26, 48, 89, 133, 212, 279, 367), (4, 8, 18, 32, 66, 103, 164, 230, 308, 377), (4, 12, 26, 50, 86, 140, 186, 262, 328, 424), (4, 6, 10, 18, 42, 72, 124, 196, 282, 356), (4, 8, 12, 28, 52, 94, 148, 230, 296, 378), (4, 12, 32, 64, 104, 146, 196, 250, 338, 428)] |
Wells’ vertex symbol | [4^2.6, 4^2.6.7^2.9, 6.7^4.12, 4^4.6^2, 4^4.6^2, 6^4.8.9] |
Systre key | (3, 1, 2, 0, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 1, 5, 0, 0, 0, 2, 3, 0, 1, 0, 2, 3, 1, 0, 0, 2, 6, 0, 0, 0, 3, 6, -1, -1, 0, 4, 7, 0, 0, 0, 4, 8, 0, 0, 0, 4, 9, 0, 0, 0, 5, 7, -1, 0, 0, 5, 9, 0, 1, 0, 5, 10, 0, 0, 0, 6, 11, 0, 0, 0, 6, 12, 0, 0, 0, 7, 13, 0, 0, 0, 8, 12, 0, 0, 1, 8, 13, 0, 0, 0, 8, 14, 0, 0, 0, 9, 14, 0, 0, 0, 10, 11, -1, 1, 1, 10, 13, -1, 0, 0, 10, 14, 0, 1, 0, 11, 15, 0, 0, 0, 11, 16, 0, 0, 0, 12, 15, -1, 0, 0, 12, 16, 0, 1, 0, 13, 16, 0, 1, 1, 14, 15, -1, 0, 1) |
Spacegroup: Cmma
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
3.41695 | 4.11947 | 5.50955 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.25 | 0 | 0.42308 |
0 | 0.0625 | 0.38462 |
0 | 0.25 | 0.19231 |
0.25 | 0 | 0.5 |
0 | 0.5 | 0.5 |
0.25 | 0.25 | 0 |
Edge end points:
Spacegroup: Cmma
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
3.99095 | 2.00063 | 3.97584 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.25 | 0 | 0.2485 |
0 | 0.03537 | 0.24909 |
0 | 0.25 | 0.02192 |
0.25 | 0 | 0.5 |
0 | 0.5 | 0.5 |
0.25 | 0.25 | 0 |
Edge end points:
Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
---|---|---|---|---|---|
![]() |
hqc2408 | *22222 | (6,7,2) | {4,4,4,3,4,4} | {7.7.7.7}{7.7.7.7}{7.4.4.7}{7.4.... |
