Systre crystallographic geometry file (.cgd) |
topcryst |

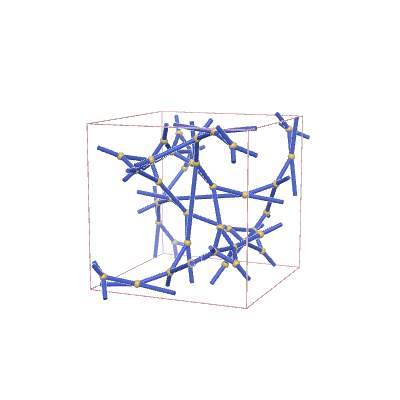

Vertices per primitive translational unit | 20 |
Edges per primitive translational unit | 40 |
Transitivity (vertex,edge) | (4,6) |
Vertex degrees | {6,3,4,4} |
Vertex coordination sequence | [(6, 10, 22, 41, 91, 150, 233, 341, 519, 653), (3, 10, 19, 42, 73, 150, 217, 328, 480, 639), (4, 10, 31, 52, 106, 174, 265, 388, 533, 686), (4, 12, 30, 65, 111, 192, 289, 413, 575, 733)] |
Wells’ vertex symbol | [3^4.4^2.7^2.8^6.9, 3.7^2, 6.7^4.10, 6^2.7^2.8^2] |
Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 5, 0, 0, 0, 2, 6, 0, 0, 0, 3, 7, 0, 0, 0, 3, 8, 0, 0, 0, 3, 9, 0, 0, 0, 4, 10, 0, 0, 0, 4, 11, 0, 0, 0, 4, 12, 0, 0, 0, 5, 12, 0, 1, 0, 5, 13, 0, 0, 0, 5, 14, 0, 0, 0, 6, 8, 0, 0, 1, 6, 15, 0, 0, 0, 6, 16, 0, 0, 0, 7, 17, 0, 0, 0, 7, 18, 0, 0, 0, 8, 12, -1, 0, -1, 8, 12, 0, 1, 0, 9, 17, -1, -1, 0, 9, 18, -1, -1, 0, 10, 17, 0, -1, 1, 10, 19, 0, 0, 0, 11, 17, 0, -1, 0, 11, 19, 0, 0, -1, 13, 19, 0, 0, 0, 13, 20, 0, 0, 0, 14, 19, -1, 0, -1, 14, 20, -1, 0, -1, 15, 18, -1, 0, 0, 15, 20, -1, 0, 0, 16, 18, -1, -1, 0, 16, 20, -1, -1, 0, 17, 18, 0, 0, 0, 17, 19, 0, 1, -1, 18, 20, 0, 0, 0, 19, 20, 0, 0, 0) |
Spacegroup: I4122
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
3.9146 | 3.9146 | 3.98706 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.72458 | 0.25 | 0.125 |
0.2048 | 0.62853 | 0.08333 |
0.08898 | 0.08898 | 0 |
0.02966 | 0.25 | 0.125 |
Edge end points:
Spacegroup: I4122
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
2.01065 | 2.01065 | 4.00655 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.73988 | 0.25 | 0.125 |
0.12924 | 0.05265 | 0.24407 |
0.15203 | 0.15203 | 0 |
0.00031 | 0.25 | 0.125 |
Edge end points:
Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
---|---|---|---|---|---|
![]() |
hqc1474 | *22222 | (4,5,2) | {6,3,4,4} | {3.7.3.3.7.3}{3.7.7}{7.7.7.7}{7.... |
