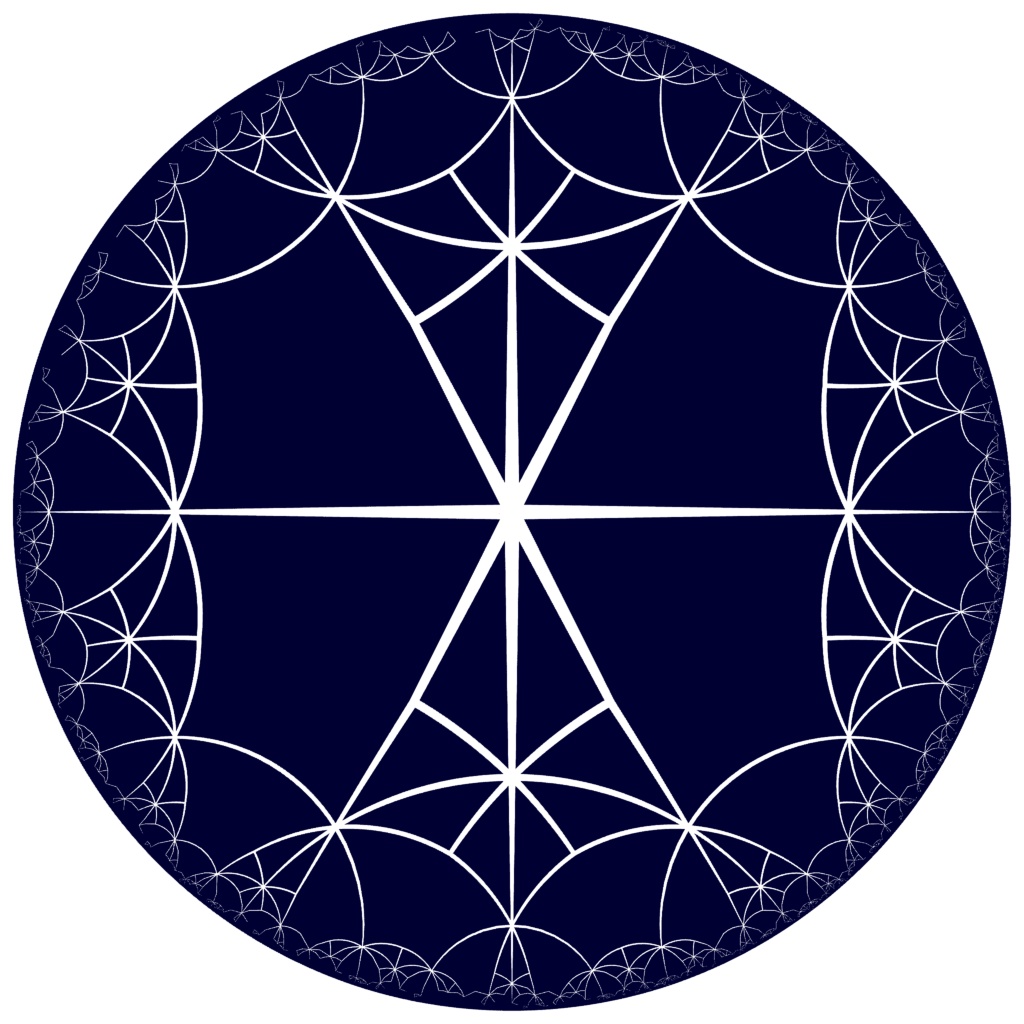

h-net: hqc1187
Topological data
| Orbifold symbol | *2224 |
| Transitivity (vertex, edge, ring) | (3,4,2) |
| Vertex degrees | {8,3,8} |
| 2D vertex symbol | {6.3.3.6.6.3.3.6}{6.3.3}{3.3.3.3.3.3.3.3} |
| Vertex coordination sequence | [(8, 24, 60, 164, 428, 1120, 2928, 7672, 20084, 52580), (3, 15, 46, 115, 301, 792, 2073, 5427, 14202, 37191), (8, 20, 68, 160, 428, 1116, 2936, 7668, 20084, 52576)] |
| Delaney-Dress Symbol | <1187.2:9:1 3 5 7 9,2 3 6 9 8,1 4 5 6 7 8 9:6 3,8 3 8> |
| Dual net | hqc1018 |
Derived s-nets
s-nets with faithful topology
6 records listed.| Image | s-net name | Other names | Space group | Space group number | Symmetry class | Vertex degree(s) | Vertices per primitive unit cell | Transitivity (Vertex, Edge) |
|---|---|---|---|---|---|---|---|---|
|
sqc2423 | P4/mmm | 123 | tetragonal | {8,3,8} | 7 | (3,4) | |
|
sqc8974 | I4/mmm | 139 | tetragonal | {8,3,8} | 14 | (3,4) | |
|
sqc12640 | I41/acd | 142 | tetragonal | {8,3,8} | 28 | (3,5) | |
|
sqc12682 | I41/acd | 142 | tetragonal | {8,3,8} | 28 | (3,5) | |
|
sqc2956 | I4/mmm | 139 | tetragonal | {8,3,8} | 7 | (3,4) | |
|
sqc8930 | P42/nnm | 134 | tetragonal | {8,8,3} | 14 | (3,4) |
s-nets with edge collapse
No items to display.Derived U-tilings
2 records listed.| Image | U-tiling name | PGD Subgroup | Transitivity (Vert,Edge,Face) | Vertex Degree | Vertex Symbol | P net | G net | D net |
|---|---|---|---|---|---|---|---|---|
 |
UQC4082 | *2224 | (3,4,2) | {8,3,8} | {6.3.3.6.6.3.3.6}{6.3.3}{3.3.3.3... |
sqc2423
|
sqc12640
|
sqc8930
|
 |
UQC4083 | *2224 | (3,4,2) | {8,3,8} | {6.3.3.6.6.3.3.6}{6.3.3}{3.3.3.3... |
sqc8974
|
sqc12682
|
sqc2956
|
