Systre crystallographic geometry file (.cgd) |
topcryst |

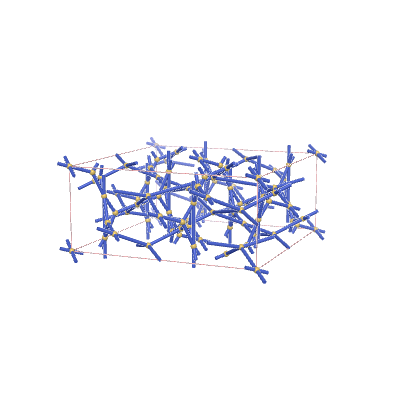

Vertices per primitive translational unit | 20 |
Edges per primitive translational unit | 40 |
Transitivity (vertex,edge) | (4,6) |
Vertex degrees | {6,3,4,4} |
Vertex coordination sequence | [(6, 10, 22, 46, 112, 174, 300, 462, 654, 878), (3, 10, 19, 46, 90, 178, 283, 426, 619, 829), (4, 10, 32, 62, 128, 230, 342, 490, 708, 900), (4, 12, 32, 74, 144, 242, 377, 537, 719, 955)] |
Wells’ vertex symbol | [3^4.4^2.7^2.8^4.9^3, 3.7^2, 7^4.8.10, 7^4.8.10] |
Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 3, 0, 0, 1, 2, 4, 0, 1, 0, 3, 5, 0, 0, 0, 3, 6, 0, 0, 0, 4, 7, 0, 0, 0, 4, 8, 0, 0, 0, 5, 9, 0, 0, 0, 5, 10, 0, 0, 0, 6, 11, 0, 0, 0, 6, 12, 0, 0, 0, 7, 9, -1, -1, 0, 7, 10, 0, 0, 1, 8, 11, 0, -1, 0, 8, 12, 1, 0, 1, 9, 10, 0, 0, 0, 9, 10, 1, 1, 1, 9, 13, 0, 0, 0, 9, 14, 0, 0, 0, 10, 13, -1, -1, -1, 10, 14, 0, 0, 0, 11, 12, 0, 0, 0, 11, 12, 1, 1, 1, 11, 15, 0, 0, 0, 11, 16, 0, 0, 0, 12, 15, -1, -1, -1, 12, 16, 0, 0, 0, 13, 17, 0, 0, 0, 14, 18, 0, 0, 0, 15, 17, -1, 0, -1, 16, 18, -1, -1, 0, 17, 19, 0, 0, 0, 17, 20, 0, 0, 0, 18, 19, -1, 0, -1, 18, 20, 0, 0, -1, 19, 20, 1, 0, 1, 19, 20, 1, 1, 0) |
Spacegroup: Fddd
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
5.8696 | 2.556 | 5.86771 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.125 | 0.125 | 0.375 |
0.33333 | 0.08333 | 0.16667 |
0 | 0 | 0 |
0.125 | 0.41667 | 0.125 |
Edge end points:
Spacegroup: Fddd
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
2.8603 | 2.15974 | 2.85436 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.125 | 0.125 | 0.37495 |
0.09007 | 0.12491 | 0.32321 |
0 | 0 | 0 |
0.125 | 0.60614 | 0.125 |
Edge end points:
Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
---|---|---|---|---|---|
![]() |
hqc1474 | *22222 | (4,5,2) | {6,3,4,4} | {3.7.3.3.7.3}{3.7.7}{7.7.7.7}{7.... |
