Systre crystallographic geometry file (.cgd) |
topcryst |

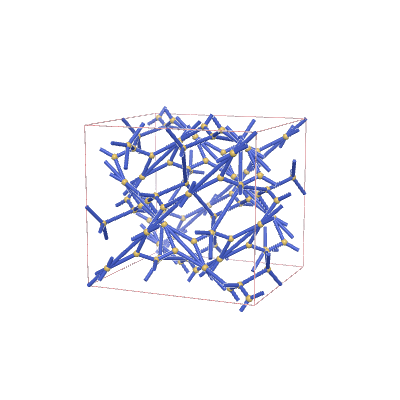

Vertices per primitive translational unit | 20 |
Edges per primitive translational unit | 40 |
Transitivity (vertex,edge) | (4,6) |
Vertex degrees | {6,3,4,4} |
Vertex coordination sequence | [(6, 10, 22, 45, 96, 167, 276, 405, 608, 817), (3, 10, 19, 45, 83, 159, 259, 393, 575, 780), (4, 10, 32, 62, 118, 200, 312, 474, 648, 866), (4, 12, 32, 77, 134, 219, 342, 494, 680, 907)] |
Wells’ vertex symbol | [3^4.4^2.7^2.8^5.9^2, 3.7^2, 7^4.8^2, 7^4.8.9] |
Systre key | (3, 1, 2, 0, 0, 0, 1, 2, 1, 0, 0, 1, 3, 0, 0, 0, 1, 4, 0, 0, 0, 2, 5, 0, 0, 0, 2, 6, 0, 0, 0, 3, 7, 0, 0, 0, 3, 8, 0, 0, 0, 3, 9, 0, 0, 0, 4, 8, 0, 1, 0, 4, 10, 0, 0, 0, 4, 11, 0, 0, 0, 5, 12, 0, 0, 0, 5, 13, 0, 0, 0, 5, 14, 0, 0, 0, 6, 12, 0, 1, 0, 6, 15, 0, 0, 0, 6, 16, 0, 0, 0, 7, 17, 0, 0, 0, 7, 18, 0, 0, 0, 8, 12, -1, 1, 1, 8, 12, 0, 0, 1, 9, 19, 0, 0, 0, 9, 20, 0, 0, 0, 10, 19, -1, 1, 0, 10, 20, 1, 0, -1, 11, 17, -1, 1, 1, 11, 18, -1, 1, 0, 13, 17, 0, 0, 0, 13, 18, 0, 0, -1, 14, 19, -1, 0, 0, 14, 20, 1, -1, -1, 15, 19, 0, 0, -1, 15, 20, 0, 0, -1, 16, 17, -1, 1, 0, 16, 18, -1, 1, 0, 17, 18, 0, 0, -1, 17, 18, 0, 0, 0, 19, 20, 0, 0, 0, 19, 20, 2, -1, -1) |
Spacegroup: Fddd
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
4.73382 | 4.32009 | 4.23461 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.125 | 0.125 | 0 |
0.04167 | 0.275 | 0.20833 |
0.125 | 0.325 | 0.125 |
0.45833 | 0.125 | 0.125 |
Edge end points:
Spacegroup: Fddd
Parameters:
a | b | c | alpha | beta | gamma |
---|---|---|---|---|---|
3.32492 | 2.29076 | 3.33051 | 90.0 | 90.0 | 90.0 |
Vertex positions:
X-pos | Y-pos | Z-pos |
---|---|---|
0.125 | 0.125 | 0.25312 |
0.11135 | 0.04612 | 0.42189 |
0.125 | 0.02358 | 0.125 |
0.50402 | 0.125 | 0.125 |
Edge end points:
Image | h-net name | Orbifold symbol | Transitivity (Vert,Edge,Face) | Vertex Degree | 2D Vertex Symbol |
---|---|---|---|---|---|
![]() |
hqc1474 | *22222 | (4,5,2) | {6,3,4,4} | {3.7.3.3.7.3}{3.7.7}{7.7.7.7}{7.... |
